Buy LOCK CORNER HORIZONTAL TRAY COVER K - LGGz 45° from the manufacturer
Designed to protect cable lines laid in cable trays. For additional fixation of the cover, an NKLz overlay is installed. Used in a system of perforated (blind) locking trays.

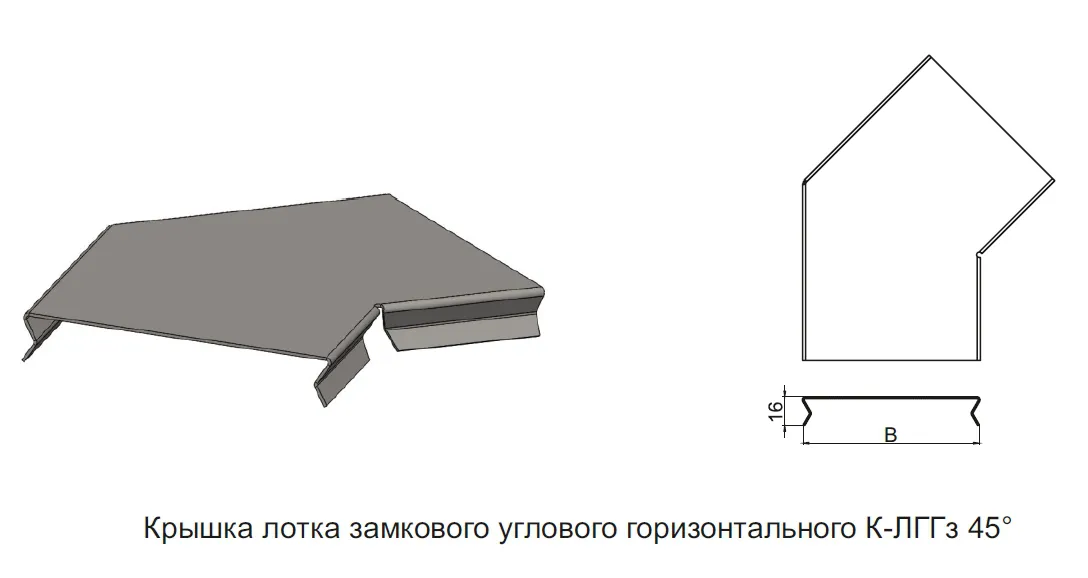

Table. cover for interlocking horizontal angle tray K-LGGz 45°
| Item No. | Name | Width B, | Thickness S, | Weight, kg |
| mm | mm | |||
| KLZKG4505001S2 | K-LGGz 45°, 50x0,7 | 50 | 0.7 | 0.06 |
| KLZKG4510001S2 | K-LGGz 45°, 100x0,7 | 100 | 0.7 | 0.12 |
| KLZKG4515001S2 | K-LGGz 45°, 150x0,7 | 150 | 0.7 | 0.18 |
| KLZKG4515002S2 | K-LGGz 45°, 150x1,0 | 150 | 1 | 0.26 |
| KLZKG4515003S2 | K-LGGz 45°, 150x1,2 | 150 | 1.2 | 0.31 |
| KLZKG4520002S2 | K-LGGz 45°, 200x1,0 | 200 | 1 | 0.37 |
| KLZKG4520003S2 | K-LGGz 45°, 200x1,2 | 200 | 1.2 | 0.44 |
| KLZKG4525003S2 | K-LGGz 45°, 250x1,2 | 250 | 1.2 | 0.59 |
| KLZKG4530003S2 | K-LGGz 45°, 300x1,2 | 300 | 1.2 | 0.76 |
| KLZKG4535003S2 | K-LGGz 45°, 350x1,2 | 350 | 1.2 | 0.79 |
| KLZKG4540003S2 | K-LGGz 45°, 400x1,2 | 400 | 1.2 | 0.97 |
| KLZKG4545003S2 | K-LGGz 45°, 450x1,2 | 450 | 1.2 | 1.16 |
| KLZKG4550003S2 | K-LGGz 45°, 500x1,2 | 500 | 1.2 | 1.36 |
| KLZKG4560003S2 | K-LGGz 45°, 600x1,2 | 600 | 1.2 | 1.82 |
