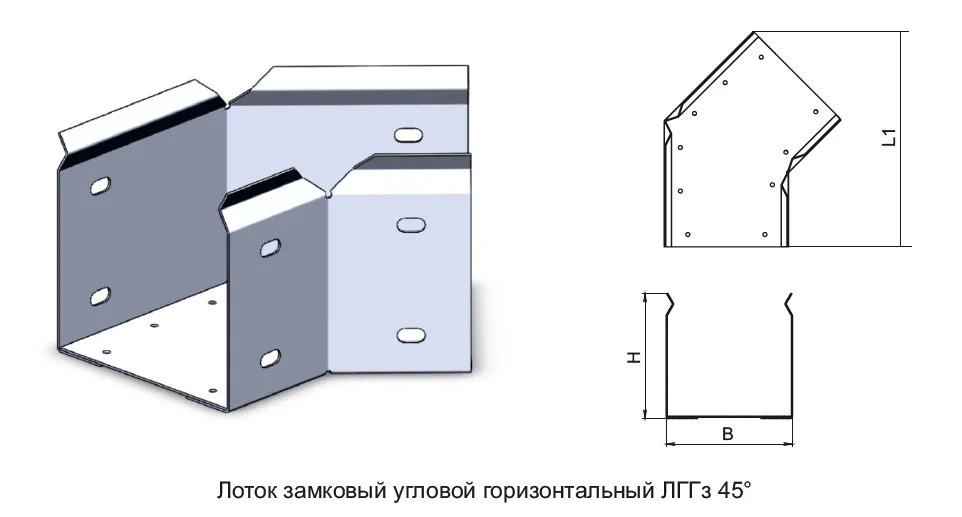

Buy LOCK CORNER HORIZONTAL TRAY LGGz 45° from the manufacturer

Designed to rotate the route at an angle of 45° in the horizontal plane. Used in a system of perforated (blind) locking trays. The trays are connected using 2 sets of SLZ connectors

Table. LOCK CORNER HORIZONTAL TRAY LGGz 45°

Item No. Name Width Height Thickness L1 Weight,
    B, mm H, mm S, mm   kg
KLZUG4505501S2 LGGz 45°, 50x50x0,7 50 50 0.7 137 0.15
KLZUG4510501S2 LGGz 45°, 100x50x0,7 100 50 0.7 173 0.22
KLZUG4515501S2 LGGz 45°, 150x50x0,7 150 50 0.7 208 0.29
KLZUG4520502S2 LGGz 45°, 200x50x1,0 200 50 1 243 0.53
KLZUG4525503S2 LGGz 45°, 250x50x1,2 250 50 1.2 280 0.82
KLZUG4530503S2 LGGz 45°, 300x50x1,2 300 50 1.2 315 1.01
KLZUG4535503S2 LGGz 45°, 350x50x1,2 350 50 1.2 350 1.22
KLZUG4540503S2 LGGz 45°, 400x50x1,2 400 50 1.2 385 1.44
KLZUG4545503S2 LGGz 45°, 450x50x1,2 450 50 1.2 420 1.69
KLZUG4550503S2 LGGz 45°, 500x50x1,2 500 50 1.2 455 1.96
KLZUG4560503S2 LGGz 45°, 600x50x1,2 600 50 1.2 526 2.56
KLZUG4510601S2 LGGz 45°, 100x60x0,7 100 60 0.7 173 0.23
KLZUG4515601S2 LGGz 45°, 150x60x0,7 150 60 0.7 208 0.31
KLZUG4520602S2 LGGz 45°, 200x60x1,0 200 60 1 243 0.56
KLZUG4525603S2 LGGz 45°, 250x60x1,2 250 60 1.2 280 0.86
KLZUG4530603S2 LGGz 45°, 300x60x1,2 300 60 1.2 315 1.17
KLZUG4535603S2 LGGz 45°, 350x60x1,2 350 60 1.2 350 1.26
KLZUG4540603S2 LGGz 45°, 400x60x1,2 400 60 1.2 385 1.5
KLZUG4545603S2 LGGz 45°, 450x60x1,2 450 60 1.2 420 1.75
KLZUG4550603S2 LGGz 45°, 500x60x1,2 500 60 1.2 455 2.02
KLZUG4560603S2 LGGz 45°, 600x60x1,2 600 60 1.2 526 2.63
KLZUG4510651S2 LGGz 45°, 100x65x0,7 100 65 0.7 173 0.24
KLZUG4515651S2 LGGz 45°, 150x65x0,7 150 65 0.7 208 0.32
KLZUG4520652S2 LGGz 45°, 200x65x1,0 200 65 1 243 0.58
KLZUG4525653S2 LGGz 45°, 250x65x1,2 250 65 1.2 280 0.88
KLZUG4530653S2 LGGz 45°, 300x65x1,2 300 65 1.2 315 1.08
KLZUG4535653S2 LGGz 45°, 350x65x1,2 350 65 1.2 350 1.28
KLZUG4540653S2 LGGz 45°, 400x65x1,2 400 65 1.2 385 1.52
KLZUG4545653S2 LGGz 45°, 450x65x1,2 450 65 1.2 420 1.77
KLZUG4550653S2 LGGz 45°, 500x65x1,2 500 65 1.2 455 2.05
KLZUG4560653S2 LGGz 45°, 600x65x1,2 600 65 1.2 526 2.66
KLZUG4510801S2 LGGz 45°, 100x80x0,7 100 80 0.7 173 0.26
KLZUG4515801S2 LGGz 45°, 150x80x0,7 150 80 0.7 208 0.34
KLZUG4520803S2 LGGz 45°, 200x80x1,2 200 80 1.2 243 0.69
KLZUG4525803S2 LGGz 45°, 250x80x1,2 250 80 1.2 280 0.94
KLZUG4530803S2 LGGz 45°, 300x80x1,2 300 80 1.2 315 1.14
KLZUG4535803S2 LGGz 45°, 350x80x1,2 350 80 1.2 350 1.36
KLZUG4540803S2 LGGz 45°, 400x80x1,2 400 80 1.2 385 1.6
KLZUG4545803S2 LGGz 45°, 450x80x1,2 450 80 1.2 420 1.86
KLZUG4550803S2 LGGz 45°, 500x80x1,2 500 80 1.2 455 2.14
KLZUG4560803S2 LGGz 45°, 600x80x1,2 600 80 1.2 526 2.76
KLZUG4510102S2 LGGz 45°, 100x100x1,0 100 100 1 173 0.42
KLZUG4515102S2 LGGz 45°, 150x100x1,0 150 100 1 208 0.55
KLZUG4520103S2 LGGz 45°, 200x100x1,2 200 100 1.2 243 0.82
KLZUG4525103S2 LGGz 45°, 250x100x1,2 250 100 1.2 280 1.02
KLZUG4530103S2 LGGz 45°, 300x100x1,2 300 100 1.2 315 1.22
KLZUG4535103S2 LGGz 45°, 350x100x1,2 350 100 1.2 350 1.46
KLZUG4540103S2 LGGz 45°, 400x100x1,2 400 100 1.2 385 1.71
KLZUG4545103S2 LGGz 45°, 450x100x1,2 450 100 1.2 420 1.97
KLZUG4550103S2 LGGz 45°, 500x100x1,2 500 100 1.2 455 2.26
KLZUG4560103S2 LGGz 45°, 600x100x1,2 600 100 1.2 526 2.9
KLZUG4515153S2 LGGz 45°, 150x150x1,2 150 150 1.2 208 0.83
KLZUG4520153S2 LGGz 45°, 200x150x1,2 200 150 1.2 243 1.02
KLZUG4520203S2 LGGz 45°, 200x200x1,2 200 200 1.2 243 1.16
Submit request
LOCK CORNER HORIZONTAL TRAY LGGz 45°
