Buy LOCK TRAY ANGULAR TURN OF THE ROUTE DOWN LSGz 45° from the manufacturer

Designed to route the cable down the route at an angle of 45°. Used in a system of perforated (blind) locking trays. The trays are connected by 2 sets of SLz connectors.

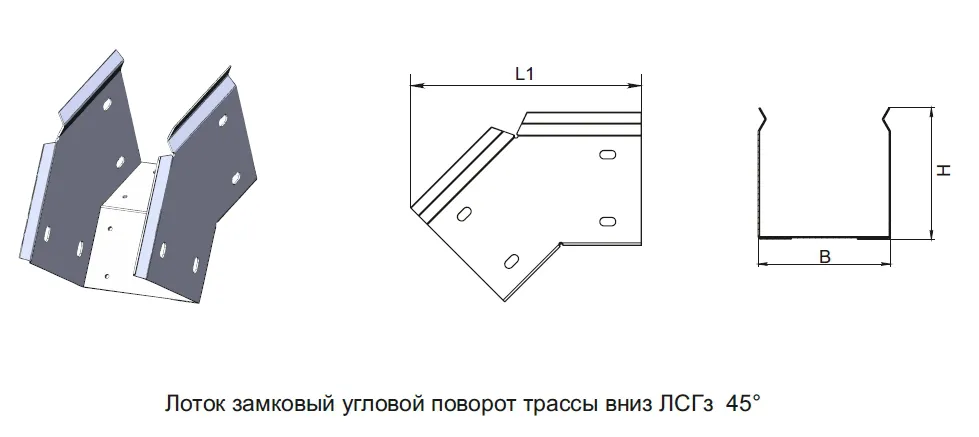

Table. LOCK TRAY ANGULAR TURN OF THE ROUTE DOWN LSGz 45°

Item No. Name Width Height Thickness L1, mm Weight, kg
    B, mm H, mm S, mm
KLZUN4505501S2 LSGz 45°, 50x50x0,7 50 50 0.7 135 0.13
KLZUN4510501S2 LSGz 45°, 100x50x0,7 100 50 0.7 135 0.16
KLZUN4515501S2 LSGz 45°, 150x50x0,7 150 50 0.7 135 0.2
KLZUN4520502S2 LSGz 45°, 200x50x1,0 200 50 1 135 0.32
KLZUN4525503S2 LSGz 45°, 250x50x1,2 250 50 1.2 135 0.46
KLZUN4530503S2 LSGz 45°, 300x50x1,2 300 50 1.2 135 0.51
KLZUN4535503S2 LSGz 45°, 350x50x1,2 350 50 1.2 135 0.57
KLZUN4540503S2 LSGz 45°, 400x50x1,2 400 50 1.2 135 0.63
KLZUN4545503S2 LSGz 45°, 450x50x1,2 450 50 1.2 135 0.68
KLZUN4550503S2 LSGz 45°, 500x50x1,2 500 50 1.2 135 0.74
KLZUN4560503S2 LSGz 45°, 600x50x1,2 600 50 1.2 135 0.85
KLZUN4510601S2 LSGz 45°, 100x60x0,7 100 60 0.7 145 0.18
KLZUN4515601S2 LSGz 45°, 150x60x0,7 150 60 0.7 145 0.22
KLZUN4520602S2 LSGz 45°, 200x60x1,0 200 60 1 145 0.34
KLZUN4525603S2 LSGz 45°, 250x60x1,2 250 60 1.2 145 0.48
KLZUN4530603S2 LSGz 45°, 300x60x1,2 300 60 1.2 145 0.53
KLZUN4535603S2 LSGz 45°, 350x60x1,2 350 60 1.2 145 0.59
KLZUN4540603S2 LSGz 45°, 400x60x1,2 400 60 1.2 145 0.65
KLZUN4545603S2 LSGz 45°, 450x60x1,2 450 60 1.2 145 0.7
KLZUN4550603S2 LSGz 45°, 500x60x1,2 500 60 1.2 145 0.76
KLZUN4560603S2 LSGz 45°, 600x60x1,2 600 60 1.2 145 0.87
KLZUN4510651S2 LSGz 45°, 100x65x0,7 100 65 0.7 150 0.18
KLZUN4515651S2 LSGz 45°, 150x65x0,7 150 65 0.7 150 0.22
KLZUN4520652S2 LSGz 45°, 200x65x1,0 200 65 1 150 0.36
KLZUN4525653S2 LSGz 45°, 250x65x1,2 250 65 1.2 150 0.5
KLZUN4530653S2 LSGz 45°, 300x65x1,2 300 65 1.2 150 0.55
KLZUN4535653S2 LSGz 45°, 350x65x1,2 350 65 1.2 150 0.61
KLZUN4540653S2 LSGz 45°, 400x65x1,2 400 65 1.2 150 0.67
KLZUN4545653S2 LSGz 45°, 450x65x1,2 450 65 1.2 150 0.72
KLZUN4550653S2 LSGz 45°, 500x65x1,2 500 65 1.2 150 0.78
KLZUN4560653S2 LSGz 45°, 600x65x1,2 600 65 1.2 150 0.89
KLZUN4510801S2 LSGz 45°, 100x80x0,7 100 80 0.7 155 0.22
KLZUN4515801S2 LSGz 45°, 150x80x0,7 150 80 0.7 155 0.26
KLZUN4520803S2 LSGz 45°, 200x80x1,2 200 80 1.2 155 0.48
KLZUN4525803S2 LSGz 45°, 250x80x1,2 250 80 1.2 155 0.54
KLZUN4530803S2 LSGz 45°, 300x80x1,2 300 80 1.2 155 0.59
KLZUN4535803S2 LSGz 45°, 350x80x1,2 350 80 1.2 155 0.65
KLZUN4540803S2 LSGz 45°, 400x80x1,2 400 80 1.2 155 0.71
KLZUN4545803S2 LSGz 45°, 450x80x1,2 450 80 1.2 155 0.76
KLZUN4550803S2 LSGz 45°, 500x80x1,2 500 80 1.2 155 0.82
KLZUN4560803S2 LSGz 45°, 600x80x1,2 600 80 1.2 155 0.93
KLZUN4510102S2 LSGz 45°, 100x100x1,0 100 100 1 170 0.37
KLZUN4515102S2 LSGz 45°, 150x100x1,0 150 100 1 170 0.42
KLZUN4520103S2 LSGz 45°, 200x100x1,2 200 100 1.2 170 0.56
KLZUN4525103S2 LSGz 45°, 250x100x1,2 250 100 1.2 170 0.62
KLZUN4530103S2 LSGz 45°, 300x100x1,2 300 100 1.2 170 0.67
KLZUN4535103S2 LSGz 45°, 350x100x1,2 350 100 1.2 170 0.73
KLZUN4540103S2 LSGz 45°, 400x100x1,2 400 100 1.2 170 0.79
KLZUN4545103S2 LSGz 45°, 450x100x1,2 450 100 1.2 170 0.84
KLZUN4550103S2 LSGz 45°, 500x100x1,2 500 100 1.2 170 0.9
KLZUN4560103S2 LSGz 45°, 600x100x1,2 600 100 1.2 170 1.01
KLZUN4515153S2 LSGz 45°, 150x150x1,2 150 150 1.2 210 0.73
KLZUN4520153S2 LSGz 45°, 200x150x1,2 200 150 1.2 210 0.78
KLZUN4520203S2 LSGz 45°, 200x200x1,2 200 200 1.2 240 1.02
Submit request
