Buy LOCK TRAY ANGULAR TURN UP ROUTE LPGz 45° from the manufacturer

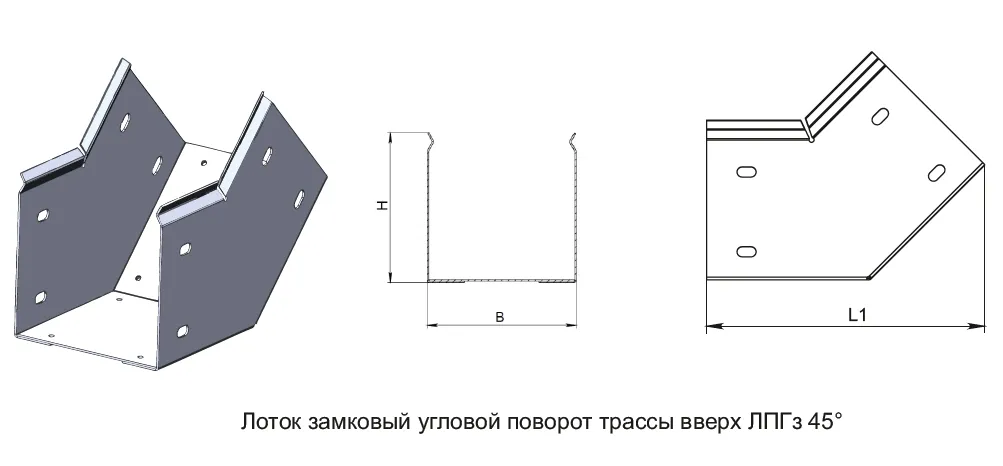

Designed to lead the cable upward along the route at an angle of 45°. Used in a system of perforated (blind) locking trays.

The trays are connected by 2 sets of SLz connectors.

Table. LOCK TRAY ANGULAR TURN OF THE ROUTE UP LPGz 45°

Item No. Name Width Height Thickness L1, Weight, kg
    B, mm H, mm S, mm mm
KLZUV4505501S2 LPGz 45°, 50x50x0,7 50 50 0.7 135 0.16
KLZUV4510501S2 LPGz 45°, 100x50x0,7 100 50 0.7 135 0.21
KLZUV4515501S2 LPGz 45°, 150x50x0,7 150 50 0.7 135 0.25
KLZUV4520502S2 LPGz 45°, 200x50x1,0 200 50 1 135 0.41
KLZUV4525503S2 LPGz 45°, 250x50x1,2 250 50 1.2 135 0.57
KLZUV4530503S2 LPGz 45°, 300x50x1,2 300 50 1.2 135 0.65
KLZUV4535503S2 LPGz 45°, 350x50x1,2 350 50 1.2 135 0.72
KLZUV4540503S2 LPGz 45°, 400x50x1,2 400 50 1.2 135 0.8
KLZUV4545503S2 LPGz 45°, 450x50x1,2 450 50 1.2 135 0.87
KLZUV4550503S2 LPGz 45°, 500x50x1,2 500 50 1.2 135 0.95
KLZUV4560503S2 LPGz 45°, 600x50x1,2 600 50 1.2 135 1.1
KLZUV4510601S2 LPGz 45°, 100x60x0,7 100 60 0.7 145 0.23
KLZUV4515601S2 LPGz 45°, 150x60x0,7 150 60 0.7 145 0.28
KLZUV4520602S2 LPGz 45°, 200x60x1,0 200 60 1 145 0.46
KLZUV4525603S2 LPGz 45°, 250x60x1,2 250 60 1.2 145 0.63
KLZUV4530603S2 LPGz 45°, 300x60x1,2 300 60 1.2 145 0.71
KLZUV4535603S2 LPGz 45°, 350x60x1,2 350 60 1.2 145 0.79
KLZUV4540603S2 LPGz 45°, 400x60x1,2 400 60 1.2 145 0.87
KLZUV4545603S2 LPGz 45°, 450x60x1,2 450 60 1.2 145 0.95
KLZUV4550603S2 LPGz 45°, 500x60x1,2 500 60 1.2 145 1.03
KLZUV4560603S2 LPGz 45°, 600x60x1,2 600 60 1.2 145 1.19
KLZUV4510651S2 LPGz 45°, 100x65x0,7 100 65 0.7 150 0.23
KLZUV4515651S2 LPGz 45°, 150x65x0,7 150 65 0.7 150 0.28
KLZUV4520652S2 LPGz 45°, 200x65x1,0 200 65 1 150 0.49
KLZUV4525653S2 LPGz 45°, 250x65x1,2 250 65 1.2 150 0.66
KLZUV4530653S2 LPGz 45°, 300x65x1,2 300 65 1.2 150 0.74
KLZUV4535653S2 LPGz 45°, 350x65x1,2 350 65 1.2 150 0.85
KLZUV4540653S2 LPGz 45°, 400x65x1,2 400 65 1.2 150 0.91
KLZUV4545653S2 LPGz 45°, 450x65x1,2 450 65 1.2 150 0.99
KLZUV4550653S2 LPGz 45°, 500x65x1,2 500 65 1.2 150 1.07
KLZUV4560653S2 LPGz 45°, 600x65x1,2 600 65 1.2 150 1.23
KLZUV4510801S2 LPGz 45°, 100x80x0,7 100 80 0.7 155 0.28
KLZUV4515801S2 LPGz 45°, 150x80x0,7 150 80 0.7 155 0.33
KLZUV4520803S2 LPGz 45°, 200x80x1,2 200 80 1.2 155 0.66
KLZUV4525803S2 LPGz 45°, 250x80x1,2 250 80 1.2 155 0.75
KLZUV4530803S2 LPGz 45°, 300x80x1,2 300 80 1.2 155 0.84
KLZUV4535803S2 LPGz 45°, 350x80x1,2 350 80 1.2 155 0.93
KLZUV4540803S2 LPGz 45°, 400x80x1,2 400 80 1.2 155 1.01
KLZUV4545803S2 LPGz 45°, 450x80x1,2 450 80 1.2 155 1.1
KLZUV4550803S2 LPGz 45°, 500x80x1,2 500 80 1.2 155 1.19
KLZUV4560803S2 LPGz 45°, 600x80x1,2 600 80 1.2 155 1.36
KLZUV4510102S2 LPGz 45°, 100x100x1,0 100 100 1 170 0.42
KLZUV4515102S2 LPGz 45°, 150x100x1,0 150 100 1 170 0.55
KLZUV4520103S2 LPGz 45°, 200x100x1,2 200 100 1.2 170 0.77
KLZUV4525103S2 LPGz 45°, 250x100x1,2 250 100 1.2 170 0.87
KLZUV4530103S2 LPGz 45°, 300x100x1,2 300 100 1.2 170 0.96
KLZUV4535103S2 LPGz 45°, 350x100x1,2 350 100 1.2 170 1.06
KLZUV4540103S2 LPGz 45°, 400x100x1,2 400 100 1.2 170 1.15
KLZUV4545103S2 LPGz 45°, 450x100x1,2 450 100 1.2 170 1.25
KLZUV4550103S2 LPGz 45°, 500x100x1,2 500 100 1.2 170 1.34
KLZUV4560103S2 LPGz 45°, 600x100x1,2 600 100 1.2 170 1.53
KLZUV4515153S2 LPGz 45°, 150x150x1,2 150 150 1.2 210 0.96
KLZUV4520153S2 LPGz 45°, 200x150x1,2 200 150 1.2 210 1.33
KLZUV4520203S2 LPGz 45°, 200x200x1,2 200 200 1.2 240 1.41
Submit request
LOCK TRAY ANGULAR TURN OF THE ROUTE UP LPGz 45°
