Buy CABLE LADDER TRAY STRAIGHT REINFORCED LLPTsus from the manufacturer

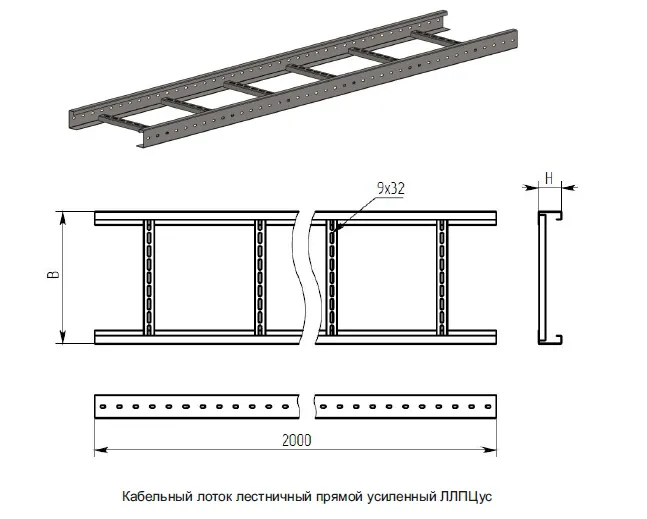

Designed for laying straight cable lines in horizontal and vertical planes.
The trays are connected using 2 sets of S-LLPTsus connectors.
Table. CABLE LADDER TRAY STRAIGHT REINFORCED LLPTSus
| Item No., version 2 | Name | Width | Height | Thickness | Weight, |
| V, mm | N, mm | S, mm | kg | ||
| ZLUPP2020704GZ | LLPTsus 200-2, h70 | 200 | 70 | 1.5 | 7.95 |
| ZLUPP2030704GZ | LLPTsus 300-2, h70 | 300 | 70 | 1.5 | 8.41 |
| ZLUPP2040704GZ | LLPTsus 400-2, h70 | 400 | 70 | 1.5 | 8.84 |
| ZLUPP2050704GZ | LLPTsus 500-2, h70 | 500 | 70 | 1.5 | 9.29 |
| ZLUPP2060704GZ | LLPTsus 600-2, h70 | 600 | 70 | 1.5 | 9.72 |
| ZLUPP6020704GZ | LLPTsus 200-6, h70 | 200 | 70 | 1.5 | 22.24 |
| ZLUPP6030704GZ | LLPTsus 300-6, h70 | 300 | 70 | 1.5 | 25.65 |
| ZLUPP6040704GZ | LLPTsus 400-6, h70 | 400 | 70 | 1.5 | 27.09 |
| ZLUPP6050704GZ | LLPTsus 500-6, h70 | 500 | 70 | 1.5 | 28.59 |
| ZLUPP6060704GZ | LLPTsus 600-6, h70 | 600 | 70 | 1.5 | 30.04 |
| ZLUPP2020105GZ | LLPTsus 200-2, h100 | 200 | 100 | 2 | 11.73 |
| ZLUPP2030105GZ | LLPTsus 300-2, h100 | 300 | 100 | 2 | 12.33 |
| ZLUPP2040105GZ | LLPTsus 400-2, h100 | 400 | 100 | 2 | 12.91 |
| ZLUPP2050105GZ | LLPTsus 500-2, h100 | 500 | 100 | 2 | 13.46 |
| ZLUPP2060105GZ | LLPTsus 600-2, h100 | 600 | 100 | 2 | 14.08 |
| ZLUPP6020105GZ | LLPTsus 200-6, h100 | 200 | 100 | 2 | 35.36 |
| ZLUPP6030105GZ | LLPTsus 300-6, h100 | 300 | 100 | 2 | 37.38 |
| ZLUPP6040105GZ | LLPTsus 400-6, h100 | 400 | 100 | 2 | 39.3 |
| ZLUPP6050105GZ | LLPTsus 500-6, h100 | 500 | 100 | 2 | 41.12 |
| ZLUPP6060105GZ | LLPTsus 600-6, h100 | 600 | 100 | 2 | 43.21 |
