Buy ANGULAR HORIZONTAL CABLE TRAY LUGTSUS from the manufacturer

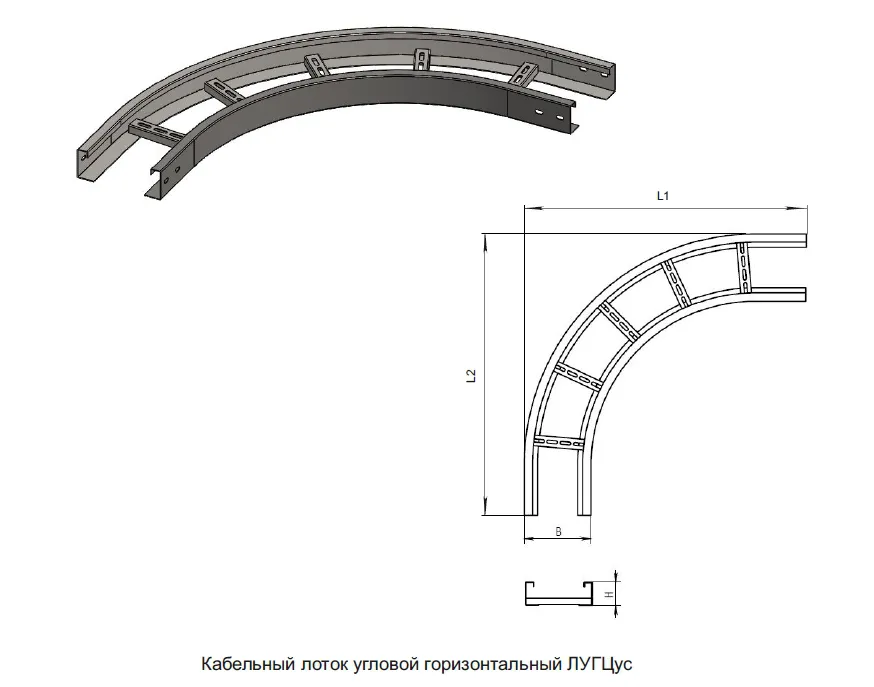

The corner horizontal cable tray LUGTSus is designed to rotate the route at an angle of 90°.
The trays are supplied in packs of 5 trays.
Table. CORNER HORIZONTAL CABLE TRAY LUGTSUS
| Item No., version 2 | Name | Width | Height H, | Thickness | L1, | L2, | Weight, |
| B, mm | mm | S, mm | mm | mm | kg | ||
| ZLUUG9020704GZ | LUGTSus 200, h70 | 200 | 70 | 1.5 | 500 | 500 | 5.11 |
| ZLUUG9030704GZ | LUGTSus 300, h70 | 300 | 70 | 1.5 | 600 | 600 | 5.77 |
| ZLUUG9040704GZ | LUGTSus 400, h70 | 400 | 70 | 1.5 | 700 | 700 | 6.42 |
| ZLUUG9050704GZ | LUGTSus 500, h70 | 500 | 70 | 1.5 | 800 | 800 | 7.08 |
| ZLUUG9060704GZ | LUGTSus 600, h70 | 600 | 70 | 1.5 | 900 | 900 | 7.72 |
| ZLUUG9020105GZ | LUGTSus 200, h100 | 200 | 100 | 2 | 500 | 500 | 7.83 |
| ZLUUG9030105GZ | LUGTSus 300, h100 | 300 | 100 | 2 | 600 | 600 | 8.8 |
| ZLUUG9040105GZ | LUGTSus 400, h100 | 400 | 100 | 2 | 700 | 700 | 9.73 |
| ZLUUG9050105GZ | LUGTSus 500, h100 | 500 | 100 | 2 | 800 | 800 | 10.63 |
| ZLUUG9060105GZ | LUGTSus 600, h100 | 600 | 100 | 2 | 900 | 900 | 11.6 |
