Buy CABLE BRACKETS SHELF SERIES SV(K) from the manufacturer
Cable brackets полочные серии СВ(K) изготавливаются следующих видов:

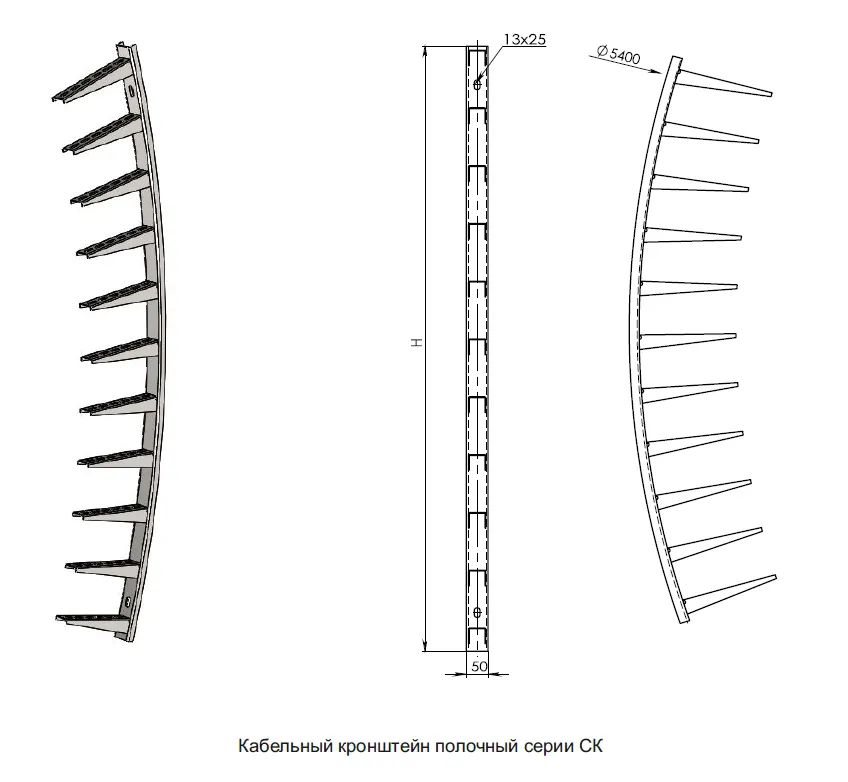

SkhKu - C-shelf, K-curvilinear;

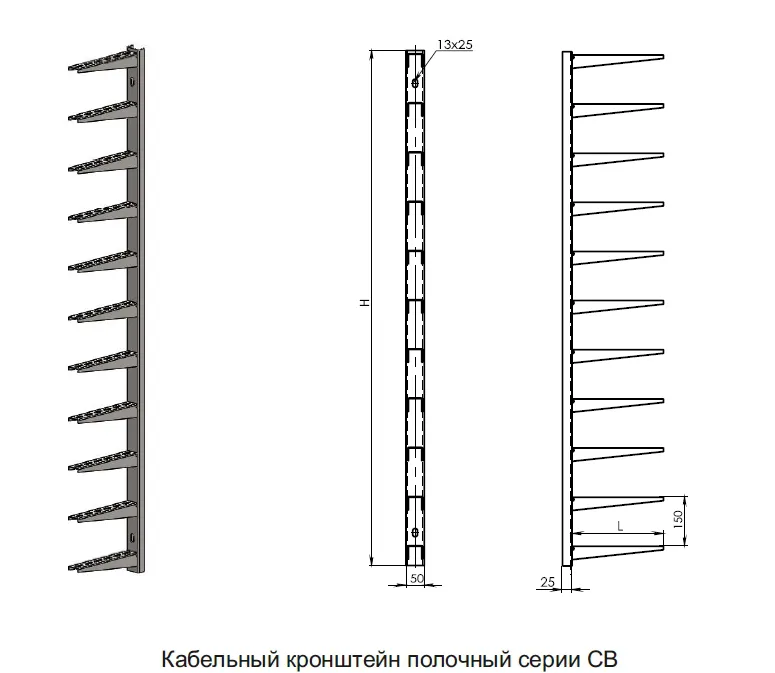

CxVu - C-shelf, B-straight;
x – 2;3 – nominal shelf length;
y – 1-15 – number of shelves on the bracket.
Table. Cable brackets полочные серии СВ(K)
| Item No., version2 | Item No., version3 | Designation | Col. | Shelf length | Height | Weight, |
| shelves | L, mm | N, mm | kg | |||
| KSV022433700GZ | KSV022433700OC | S2V2 | 2 | 243 | 370 | 1.43 |
| KSK022433700GZ | KSK022433700OC | S2K2 | ||||
| KSV032433700GZ | KSV032433700OC | S2V3 | 3 | 243 | 370 | 1.7 |
| KSK032433700GZ | KSK032433700OC | S2K3 | ||||
| KSV042435200GZ | KSV042435200OC | S2V4 | 4 | 243 | 520 | 2.3 |
| KSK042435200GZ | KSK042435200OC | S2K4 | ||||
| KSV052436700GZ | KSV052436700OC | S2V5 | 5 | 243 | 670 | 3 |
| KSK052436700GZ | KSK052436700OC | S2K5 | ||||
| KSV062438200GZ | KSV062438200OC | S2V6 | 6 | 243 | 820 | 3.6 |
| KSK062438200GZ | KSK062438200OC | S2K6 | ||||
| KSV072439700GZ | KSV072439700OC | S2V7 | 7 | 243 | 970 | 4.2 |
| KSK072439700GZ | KSK072439700OC | S2K7 | ||||
| KSV082431120GZ | KSV082431120OC | S2V8 | 8 | 243 | 1120 | 4.8 |
| KSK082431120GZ | KSK082431120OC | S2K8 | ||||
| KSV092431270GZ | KSV092431270OC | S2V9 | 9 | 243 | 1270 | 5.4 |
| KSK092431270GZ | KSK092431270OC | S2K9 | ||||
| KSV102431420GZ | KSV102431420OC | S2V10 | 10 | 243 | 1420 | 6.1 |
| KSK102431420GZ | KSK102431420OC | S2K10 | ||||
| KSV112431570GZ | KSV112431570OC | S2V11 | 11 | 243 | 1570 | 6.7 |
| KSK112431570GZ | KSK112431570OC | S2K11 | ||||
| KSV122431720GZ | KSV122431720OC | C2V12 | 12 | 243 | 1720 | 7.3 |
| KSK122431720GZ | KSK122431720OC | S2K12 | ||||
| KSV132431870GZ | KSV132431870OC | S2V13 | 13 | 243 | 1870 | 7.9 |
| KSK132431870GZ | KSK132431870OC | S2K13 | ||||
| KSV142432020GZ | KSV142432020OC | C2V14 | 14 | 243 | 2020 | 8.5 |
| KSK142432020GZ | KSK142432020OC | S2K14 | ||||
| KSV152432170GZ | KSV152432170OC | S2V15 | 15 | 243 | 2170 | 9.1 |
| KSK152432170GZ | KSK152432170OC | S2K15 | ||||
| KSV023303700GZ | KSV023303700OC | S3V2 | 2 | 330 | 370 | 1.77 |
| KSK023303700GZ | KSK023303700OC | S3K2 | ||||
| KSV033303700GZ | KSV033303700OC | S3V3 | 3 | 330 | 370 | 2.2 |
| KSK033303700GZ | KSK033303700OC | S3K3 | ||||
| KSV043305200GZ | KSV043305200OC | S3V4 | 4 | 330 | 520 | 2.9 |
| KSK043305200GZ | KSK043305200OC | S3K4 | ||||
| KSV053306700GZ | KSV053306700OC | S3V5 | 5 | 330 | 670 | 3.7 |
| KSK053306700GZ | KSK053306700OC | S3K5 | ||||
| KSV063308200GZ | KSV063308200OC | S3V6 | 6 | 330 | 820 | 4.5 |
| KSK063308200GZ | KSK063308200OC | S3K6 | ||||
| KSV073309700GZ | KSV073309700OC | S3V7 | 7 | 330 | 970 | 5.3 |
| KSK073309700GZ | KSK073309700OC | S3K7 | ||||
| KSV083301120GZ | KSV083301120OC | S3V8 | 8 | 330 | 1120 | 6.1 |
| KSK083301120GZ | KSK083301120OC | S3K8 | ||||
| KSV093301270GZ | KSV093301270OC | S3V9 | 9 | 330 | 1270 | 6.8 |
| KSK093301270GZ | KSK093301270OC | S3K9 | ||||
| KSV103301420GZ | KSV103301420OC | S3V10 | 10 | 330 | 1420 | 7.6 |
| KSK103301420GZ | KSK103301420OC | S3K10 | ||||
| KSV113301570GZ | KSV113301570OC | S3V11 | 11 | 330 | 1570 | 8.5 |
| KSK113301570GZ | KSK113301570OC | S3K11 | ||||
| KSV123301720GZ | KSV123301720OC | S3V12 | 12 | 330 | 1720 | 9.2 |
| KSK123301720GZ | KSK123301720OC | S3K12 | ||||
| KSV133301870GZ | KSV133301870OC | S3V13 | 13 | 330 | 1870 | 10 |
| KSK133301870GZ | KSK133301870OC | S3K13 | ||||
| KSV143302020GZ | KSV143302020OC | S3V14 | 14 | 330 | 2020 | 10.7 |
| KSK143302020GZ | KSK143302020OC | S3K14 | ||||
| KSV153302170GZ | KSV153302170OC | S3V15 | 15 | 330 | 2170 | 11.5 |
| KSK153302170GZ | KSK153302170OC | S3K15 |
