Buy CABLE BRACKETS PV SERIES from the manufacturer
Cable brackets серии ПВ (полочные вертикальные, прямолинейные) изготавливаются следующих видов:
PkhVu,PkhVuU- P-shelf, B-straight;
x – 5;6 – nominal shelf length – 5-352 mm; 6-508 mm;
y – 1-12 – number of shelves on the bracket;
U - design.

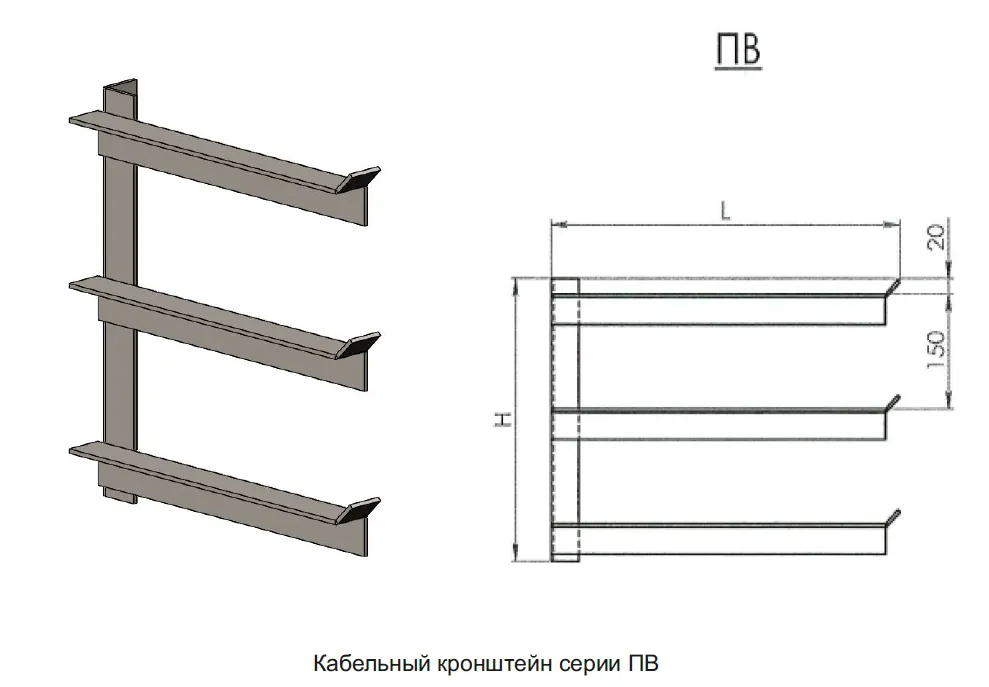

Table. cable bracket serii PV
| Item No., version 2 | Item No., version 3 | Designation | Length | Height | Weight, |
| shelves L, mm | racks H, mm | kg | |||
| KPVA35237002GZ | KPVA35237002OC | P5V2 | 352 | 370 | 2.82 |
| KPVA35237003GZ | KPVA35237003OC | P5V3 | 352 | 370 | 3.77 |
| KPVA35252004GZ | KPVA35252004OC | P5V4 | 352 | 520 | 5.09 |
| KPVA35267005GZ | KPVA35267005OC | P5V5 | 352 | 670 | 6.41 |
| KPVA35282006GZ | KPVA35282006OC | P5V6 | 352 | 820 | 7.73 |
| KPVA35297007GZ | KPVA35297007OC | P5V7 | 352 | 970 | 9.05 |
| KPVA35211208GZ | KPVA35211208OC | P5V8 | 352 | 1120 | 10.38 |
| KPVA35212709GZ | KPVA35212709OC | P5V9 | 352 | 1270 | 11.7 |
| KPVA35214210GZ | KPVA35214210OC | P5V10 | 352 | 1420 | 13.02 |
| KPVA35215711GZ | KPVA35215711OC | P5V11 | 352 | 1570 | 14.34 |
| KPVA35217212GZ | KPVA35217212OC | P5V12 | 352 | 1720 | 15.67 |
| KPVA35218713GZ | KPVA35218713OC | P5V13 | 352 | 1870 | 16.98 |
| KPVA35220214GZ | KPVA35220214OC | P5V14 | 352 | 2020 | 18.21 |
| KPVA35221715GZ | KPVA35221715OC | P5V15 | 352 | 2170 | 19.55 |
