Buy CABLE BRACKETS SP(K) SERIES from the manufacturer
Cable brackets серии СП(K)изготавливаются следующих видов:
SkhK1 - C-shelf, K-curvilinear;
SkhP1 - S-shelf, P-straight;
x – 4;6;8 – nominal bracket length.

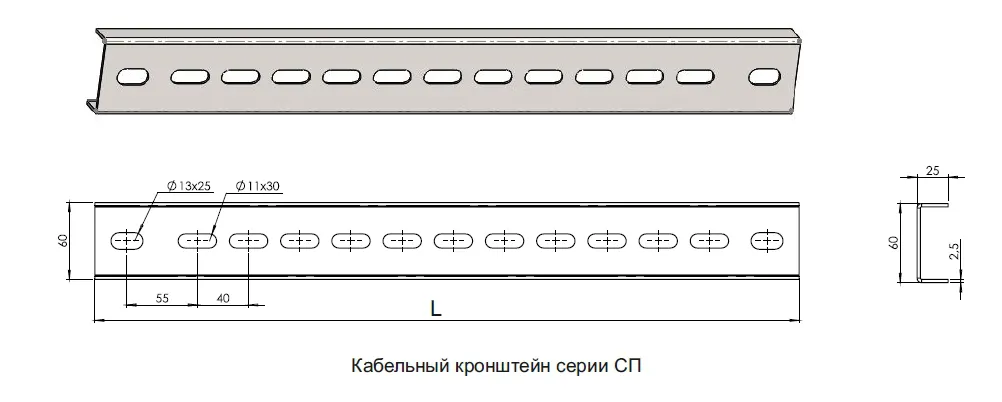

Table. cable bracket serii SP
| Item No., version1 | Item No., version3 | Designation | Length L, mm | Weight, kg |
| KSPV15500000S2 | KSPV15500000OC | S4P1 | 550 | 1.21 |
| KSPV18000000S2 | KSPV18000000OC | S6P1 | 800 | 2.21 |
| KSPV11050000S2 | KSPV11050000OC | S8P1 | 1050 | 3.21 |

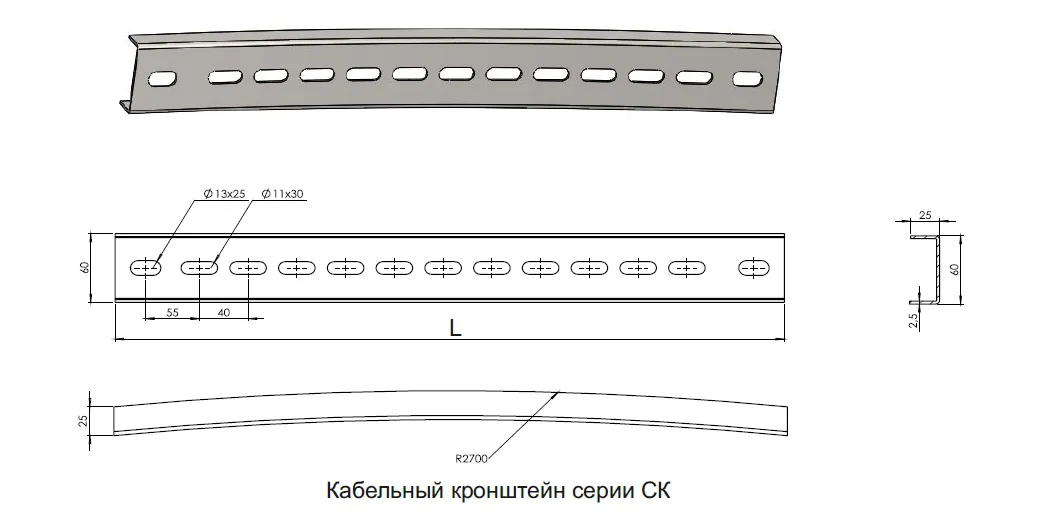

Table. cable bracket serii SK
| Item No., version1 | Item No., version3 | Designation | Length L, mm | Weight, kg |
| KSKV15500000S2 | KSKV15500000OC | S4K1 | 550 | 1.21 |
| KSKV18000000S2 | KSKV18000000OC | S6K1 | 800 | 2.21 |
| KSKV11050000S2 | KSKV11050000OC | S8K1 | 1050 | 3.21 |
