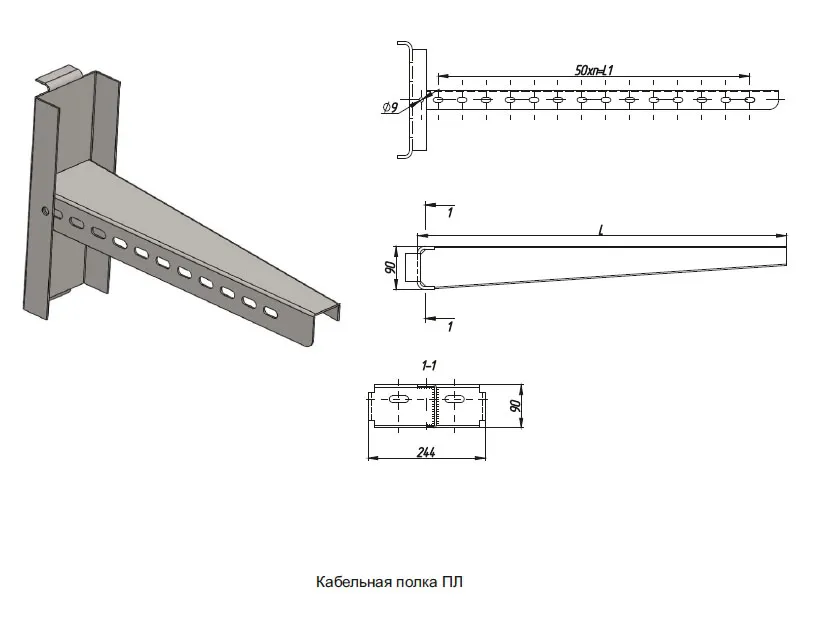

Buy CABLE SHELF PL from the manufacturer
Cable shelves PL100-PL900 are designed for laying cable trays of the LLPTsus type. The trays are attached to the shelves through the PR-LLPTsus clamp.
Manufactured in:
version 2 - steel with zinc coating applied after manufacture by hot-dip galvanizing according to GOST 9.307. The thickness of the zinc coating is 40-120 microns - GZ.
Table. CABLE SHELF PL
| Item No., version 2 | Name | Qty | Qty | Dimensions | Load | Thickness | Weight, | |
| answer | Length | Length | ||||||
| n | L, mm | L1, mm | kN | S, mm | kg | |||
| ZSKPL1012005GZ | PL100 | - | - | 120 | - | 3.15 | 2 | 1.8 |
| ZSKPL1517005GZ | PL150 | 1 | 2 | 170 | 50 | 3.15 | 2 | 1.87 |
| ZSKPL2022005GZ | PL200 | 2 | 3 | 220 | 100 | 3.15 | 2 | 1.95 |
| ZSKPL3032005GZ | PL300 | 4 | 5 | 320 | 200 | 3.15 | 2 | 2.12 |
| ZSKPL4042007GZ | PL400 | 6 | 7 | 420 | 300 | 3.15 | 3 | 2.63 |
| ZSKPL5052007GZ | PL500 | 8 | 9 | 520 | 400 | 3.15 | 3 | 2.91 |
| ZSKPL6062007GZ | PL600 | 10 | 11 | 620 | 500 | 3.15 | 3 | 3.19 |
| ZSKPL7072007GZ | PL700 | 12 | 13 | 720 | 600 | 3.15 | 3 | 3.51 |
| ZSKPL8082007GZ | PL800 | 14 | 15 | 820 | 700 | 3.15 | 3 | 3.81 |
| ZSKPL9092007GZ | PL900 | 16 | 17 | 920 | 800 | 3.15 | 3 | 4.14 |
