Buy CABLE SHELVES K1160 - K1164 from the manufacturer
Cable shelves type K1160 - K1164 are part of cable prefabricated structures. The shelves are used for laying cables, trays and boxes.
Manufactured in:
version 1 - steel according to GOST 14918 and GOST 52246, hot-dip galvanized by the Sendzimir continuous process. Zinc coating thickness: 10-18 microns - S2; 18-40 microns - S1;
version 2 - steel with zinc coating applied after manufacture by hot-dip galvanizing according to GOST 9.307. Zinc coating thickness 40-120 microns - GZ.
Cable shelves are manufactured in accordance with TU 36-1496-85. 36-1496-85.

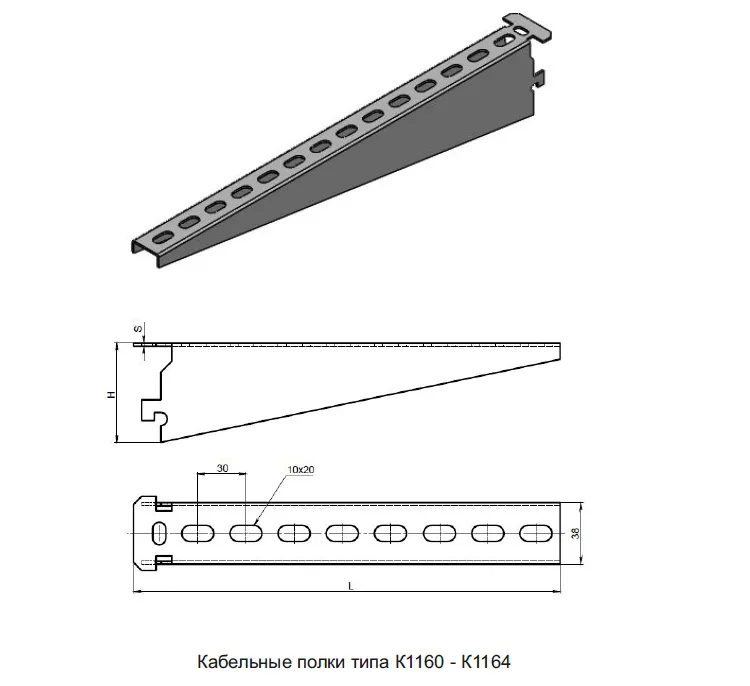

Table. Cable shelves type K1160 - K1164
| Item No., version 1 | Item No., version 2 | Type | Number | Slave. | Limit | Dimensions, mm | Weight, | ||
| resp. | Load N | add. load N | L | A | H | Spanish .kg | |||
| KPGPK6017505S2 | ZPGPK6017505GZ | K1160 | 5 | 175 | 975 | 175 | 120 | 62 | 0.25 |
| KPGPK6126505S2 | ZPGPK6126505GZ | K1161 | 8 | 275 | 1075 | 265 | 210 | 62 | 0.39 |
| KPGPK6235505S2 | ZPGPK6235505GZ | K1162 | 11 | 380 | 1200 | 355 | 300 | 62 | 0.53 |
| KPGPK6344505S2 | ZPGPK6344505GZ | K1163 | 13 | 500 | 1300 | 445 | 390 | 75 | 0.74 |
| KPGPK6460005S2 | ZPGPK6460005GZ | K1164 | 20 | 500 | 1300 | 625 | 570 | 75 | 1.06 |
