Buy MOUNTING STRIPS from the manufacturer
Perforated strips are intended for the manufacture of various structures during electrical installation work.
Strip K107, K202, K209 are manufactured in:
version 1 - steel according to GOST 14918 and GOST 52246, hot-dip galvanized by the Sendzimir continuous process. Zinc coating thickness: 10-18 microns - S2; 18-40 microns - S1;
K106 strip is manufactured in:
version 2 - steel with zinc coating applied after manufacture by hot-dip galvanizing according to GOST 9.307. Zinc coating thickness 40-120 microns - GZ.

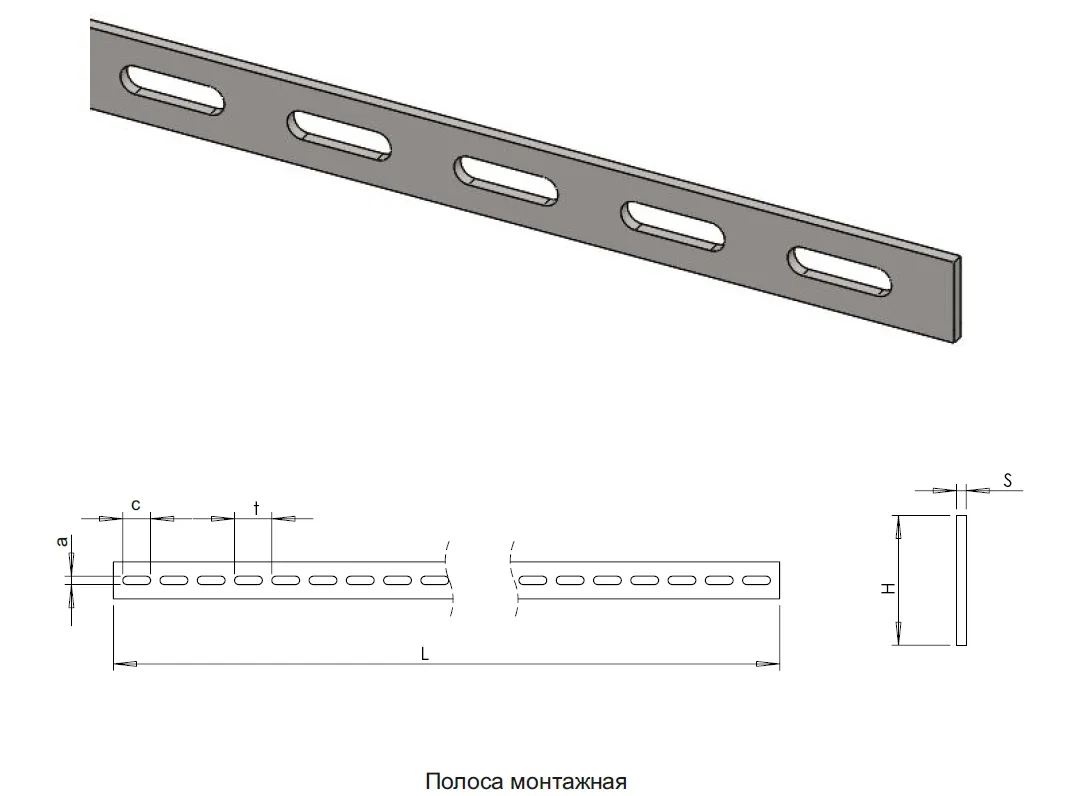

Table. Mounting strip
| Item No., version 1 | Item No., version 2 | Name | Dimensions | Number | Length | Thickness | Weight, | |||
| H | s | a | t | resp. | L, mm | S, mm | kg | |||
| - | KPGPM1062008GZ | K106 | 40 | 30 | 9 | 40 | 40 | 2000 | 4 | 2.19 |
| KPGPM1072507S2 | - | K107 | 40 | 30 | 9 | 40 | 62 | 2500 | 3 | 1.99 |
| KPGPM2022507S2 | - | K202 | 20 | 25 | 7 | 40 | 62 | 2500 | 3 | 0.98 |
| KPGPM2092502S2 | - | K209 | 20 | 25 | 7 | 30 | 83 | 2500 | 1 | 0.29 |
