Buy C-shaped PROFILES from the manufacturer
Manufactured in:
version 1 - steel according to GOST 14918 and GOST 52246, hot-dip galvanized by the Sendzimir continuous process. Zinc coating thickness: 10-18 microns –
S2; 18-40 µm – S1.

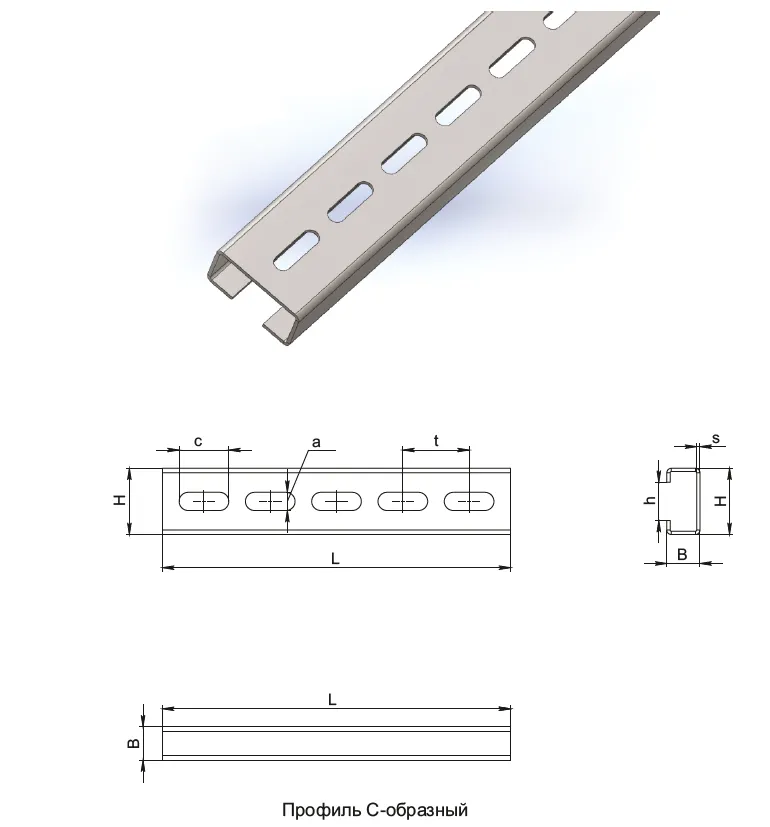

Table. C-shaped profile
| Item No., version 1 | Name | Dimensions | Number | Length | Thickness | Weight, | |||||
| H | V, | h | s | a | t | resp. | L, mm | S, mm | kg | ||
| KPGCP1082505S2 | K108 | 40 | 20 | 20 | 30 | 11 | 40 | 62 | 2500 | 2 | 3.13 |
| KPGCP1102506S2 | K110 | 80 | 40 | 30 | 45 | 13 | 60 | 41 | 2500 | 2.5 | 9.05 |
