Buy ZET PROFILES from the manufacturer
Manufactured in:
performance 1 steel according to GOST 14918, GOST 52246, hot-dip galvanized using the Sendzimir method. Zinc coating thickness: 10-18 microns - S2; 18-40 µm - S1.

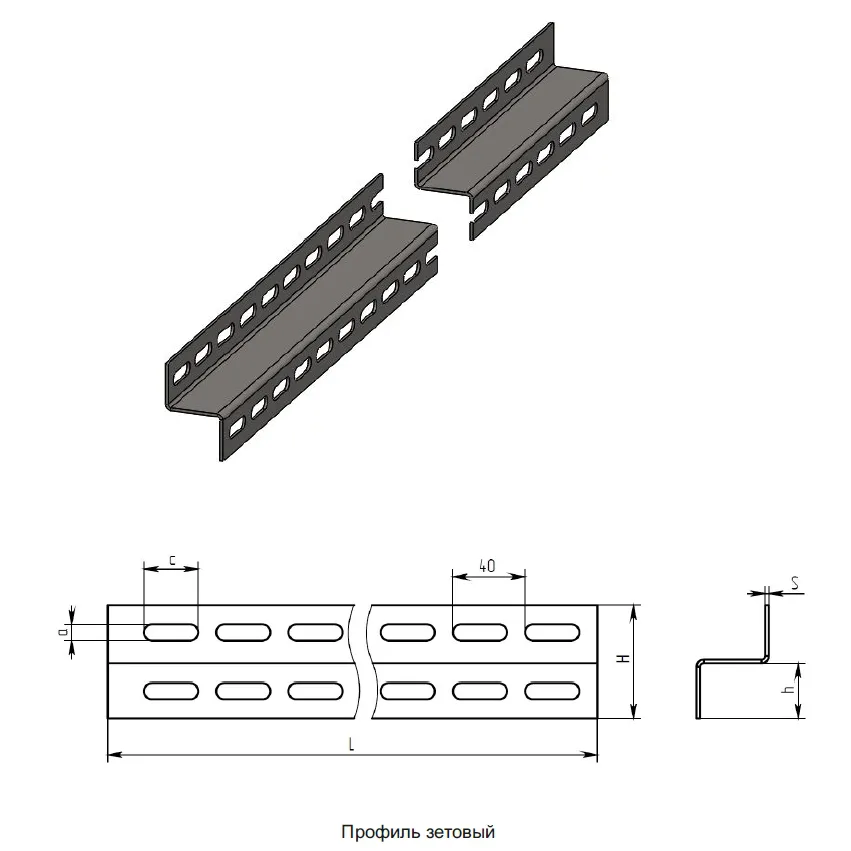

Table. Z profile
| Item No., version 1 | Name | Dimensions | Number | Length | Thickness | Weight, | ||||
| H | h | s | a | t | resp. | L, mm | S, mm | kg | ||
| KPGZP2382506S2 | K238 | 67.5 | 40 | 30 | 9 | 40 | 124 | 2500 | 2.5 | 4.5 |
| KPGZP2392506S2 | K239 | 97 | 60 | 45 | 13 | 60 | 82 | 2500 | 2.5 | 5.64 |
| KPGZP2412505S2 | K241 | 62 | 32 | 30 | 9 | 40 | 124 | 2500 | 2 | 3.4 |
