Buy CHANNEL from the manufacturer
Electrical installation steel perforated bent profiles are designed for the manufacture of various metal structures and fastening devices, cables, wires and pipes to them.
Manufactured in:
performance 1 steel according to GOST 14918, GOST 52246, hot-dip galvanized using the Sendzimir method. Zinc coating thickness: 10-18 microns - S2; 18-40 µm - S1.

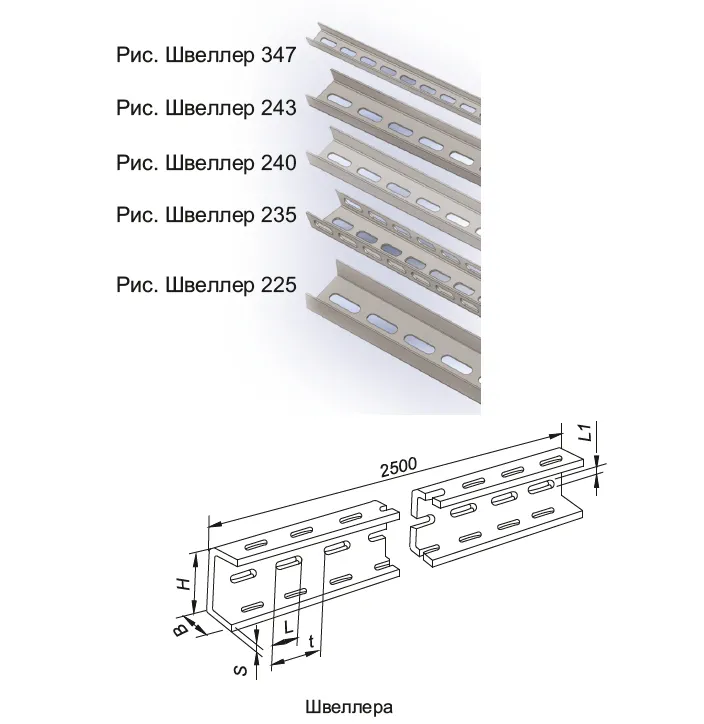

Table. Channels
| Item No., version 1 | Name | Dimensions, mm | Number | Weight, | |||||
| H | V, | L | L1 | t | s | resp. | kg | ||
| KPGSH2252506S2 | K225 | 80 | 40 | 55 | 17 | 70 | 2.5 | 35 | 6.88 |
| KPGSH2402506S2 | K240 | 60 | 32 | 45 | 13 | 60 | 2.5 | 41 | 5.39 |
| KPGSH2432506S2 | K243 | 60 | 26 | 45 | 13 | 60 | 2.5 | 41 | 4.8 |
| KPGSH2352506S2 | K235 | 60 | 30 | 45 | 13 | 60 | 2.5 | 123 | 4.8 |
| KPGSH3472505S2 | K347 | 32 | 20 | 32 | 9 | 40 | 2 | 62 | 2.42 |
