Buy BRACKET K142 from the manufacturer
Used for fastening pipes, cables and wires to building structures. Manufactured in:
version 1 - steel according to GOST 14918 and GOST 52246, hot-dip galvanized by the Sendzimir continuous process. Zinc coating thickness: 10-18 microns - S2; 18-40 microns - S1.

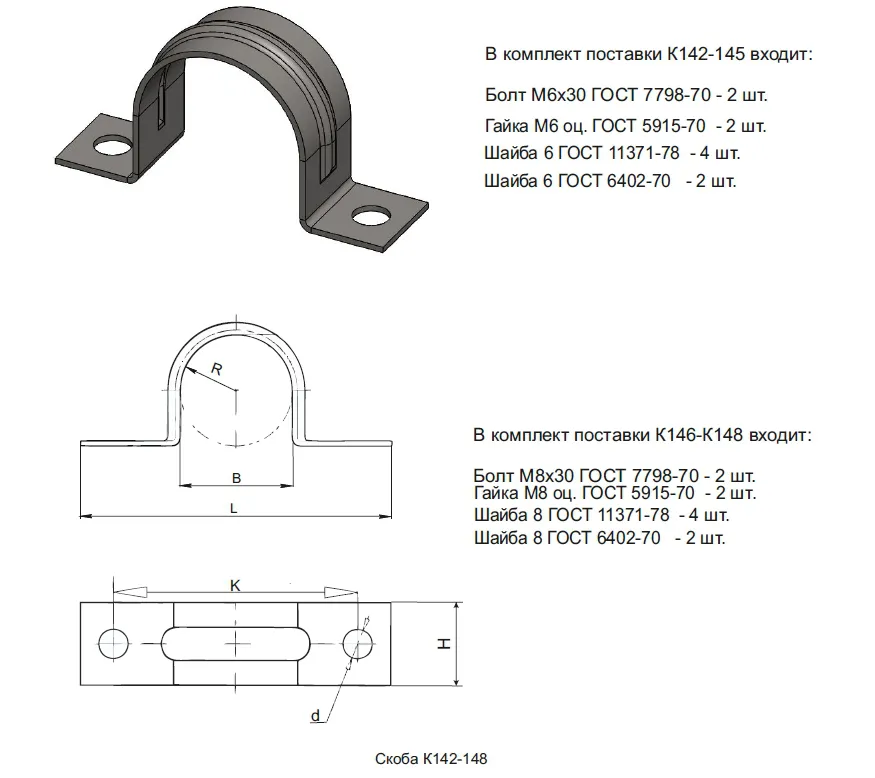

Table. bracket K142-148
| Item No., version 1 | Name | Dimensions | Thickness | Weight, | |||||
| V, | R | L | K | H | d | S, mm | kg | ||
| KPGCK1422704S2 | K142 | 27 | 13.5 | 75 | 59 | 20 | 7 | 1.5 | 0.026 |
| KPGCK1433404S2 | K143 | 34 | 17 | 82 | 66 | 20 | 7 | 1.5 | 0.031 |
| KPGCK1444304S2 | K144 | 43 | 21.5 | 91 | 75 | 20 | 7 | 1.5 | 0.036 |
| KPGCK1454804S2 | K145 | 48 | 24 | 96 | 80 | 20 | 7 | 1.5 | 0.039 |
| KPGCK1466005S2 | K146 | 60 | 30 | 120 | 100 | 24 | 9 | 2 | 0.078 |
| KPGCK1477605S2 | K147 | 76 | 38 | 136 | 116 | 24 | 9 | 2 | 0.092 |
| KPGCK1488905S2 | K148 | 89 | 44.5 | 149 | 129 | 24 | 9 | 2 | 0.106 |
