Cable ladders are manufactured in accordance with TU 3449-036-05746922-2009. 3449-036- 05746922-2009.

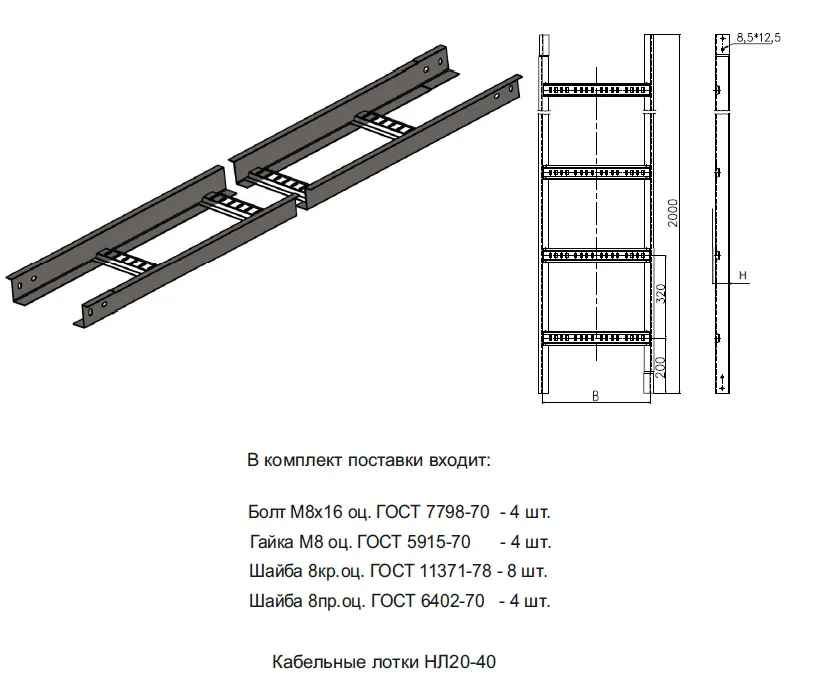

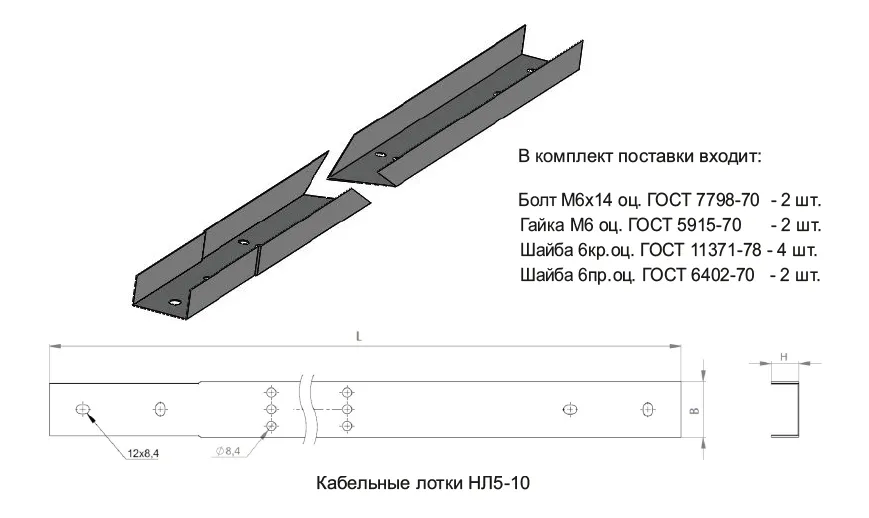

When making straight sections, routes of the same width NL5-NL40 are connected to each other by inserting one tray into another and fastening with standard threaded fasteners, which are supplied complete with straight trays.
NL5-NL10 with a side height of 25 mm, NL20-NL40 with a side height of 40,50,70 mm are manufactured in:
version 1 - steel according to GOST 14918 and GOST 52246, hot-dip galvanized by the Sendzimir continuous process. Zinc coating thickness: 10-18 microns –S2; 18-40 µm – S1.
| Item No., version 1 | Name | Dimensions | Thickness | Weight, | ||
| Height | Width | Length | ||||
| N, mm | V, mm | L, mm | S, mm | kg | ||
| KNL052505251S2 | NL5 | 25 | 50 | 2500 | 0.7 | 1.33 |
| ZNL052505253S2 | NL5 | 25 | 50 | 2500 | 1.2 | 3.04 |
| KNL102510251S2 | NL10 | 25 | 100 | 2500 | 0.7 | 2.01 |
| ZNL102510253S2 | NL10 | 25 | 100 | 2500 | 1.2 | 3.91 |
| ZNL102010403S2 | NL10 | 40 | 100 | 2000 | 1.2 | 3.47 |
| ZNL102010703S2 | NL10 | 70 | 100 | 2000 | 1.2 | 4.39 |
| ZNL202020403S2 | NL20 | 40 | 200 | 2000 | 1.2 | 3.75 |
| KNL202020703S2 | NL20 | 70 | 200 | 2000 | 1.2 | 4.69 |
| ZNL302030403S2 | NL30 | 40 | 300 | 2000 | 1.2 | 4.07 |
| KNL302030703S2 | NL30 | 70 | 300 | 2000 | 1.2 | 5.01 |
| ZNL402040404S2 | NL40 | 40 | 400 | 2000 | 1.5 | 5.45 |
| KNL402040703S2 | NL40 | 70 | 400 | 2000 | 1.2 | 5.56 |
| ZNL402040704S2 | NL40 | 70 | 400 | 2000 | 1.5 | 6.62 |
