Buy LOCK CROSS TRAY COVER K-LKGz from the manufacturer
Designed to protect cable lines laid in cable trays, For additional fixation of the cover. an NKLz overlay is installed, Used in a system of perforated .blind( locking trays)

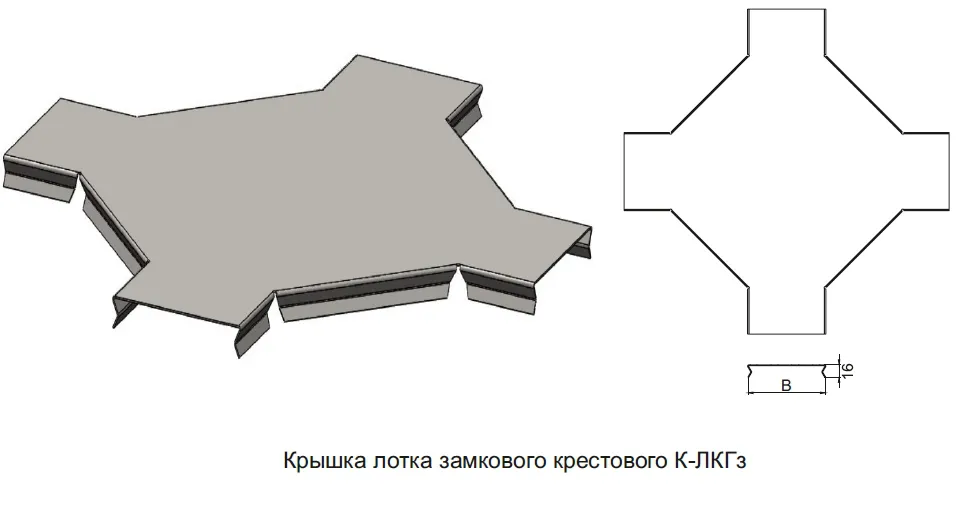

Table. COVER OF LOCK CROSS TRAY K-LKGz
| Item No. | Name | Width B, mm | Thickness S, mm | Weight, kg |
| KLZKK0005001S2 | K-LKGz 50x0,7 | 50 | 0.7 | 0.39 |
| KLZKK0010001S2 | K-LKGz 100x0,7 | 100 | 0.7 | 0.6 |
| KLZKK0015001S2 | K-LKGz 150x0,7 | 150 | 0.7 | 0.85 |
| KLZKK0015002S2 | K-LKGz 150x1,0 | 150 | 1 | 1.21 |
| KLZKK0015003S2 | K-LKGz 150x1,2 | 150 | 1.2 | 1.45 |
| KLZKK0020002S2 | K-LKGz 200x1,0 | 200 | 1 | 1.6 |
| KLZKK0020003S2 | K-LKGz 200x1,2 | 200 | 1.2 | 1.91 |
| KLZKK0025003S2 | K-LKGz 250x1,2 | 250 | 1.2 | 2.42 |
| KLZKK0030003S2 | K-LKGz 300x1,2 | 300 | 1.2 | 2.98 |
| KLZKK0035003S2 | K-LKGz 350x1,2 | 350 | 1.2 | 3.58 |
| KLZKK0040003S2 | K-LKGz 400x1,2 | 400 | 1.2 | 4.24 |
| KLZKK0045003S2 | K-LKGz 450x1,2 | 450 | 1.2 | 4.93 |
| KLZKK0050003S2 | K-LKGz 500x1,2 | 500 | 1.2 | 5.68 |
| KLZKK0060003S2 | K-LKGz 600x1,2 | 600 | 1.2 | 7.31 |
