Buy STRAIGHT LOCK TRAY, LMGz, LMz from the manufacturer

Designed for laying straight cable lines in horizontal and vertical planes.

Straight locking trays are manufactured: perforated (LMz) and blind (LMGz), 2500 mm long with a side height of 50,60,65,80,100,150,200 mm. Connected with 2 sets of SLZ connectors.

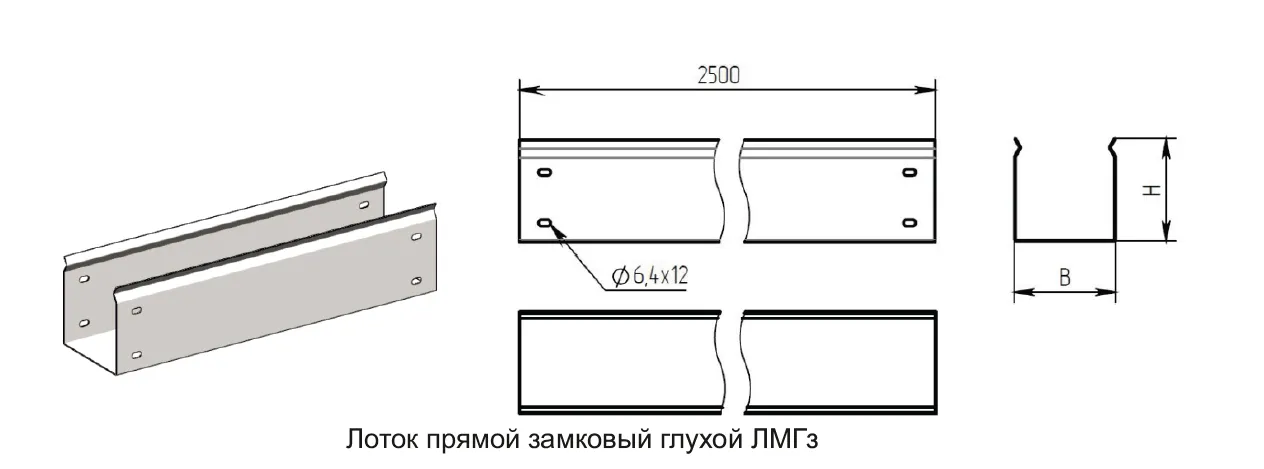

 Table. lock-joint tray straight solid LMGz

Item No. Name Width, mm Height, mm Thickness, mm Weight, kg
KLZPG2505501S2 LMGz 50x50x0,7-2500 50 50 0.7 2.06
KLZPG2510501S2 LMGz 100x50x0,7-2500 100 50 0.7 2.75
KLZPG2515501S2 LMGz 150x50x0,7-2500 150 50 0.7 3.43
KLZPG2520502S2 LMGz 200x50x1,0-2500 200 50 1 5.88
KLZPG2525503S2 LMGz 250x50x1,2-2500 250 50 1.2 8.24
KLZPG2530503S2 LMGz 300x50x1,2-2500 300 50 1.2 9.41
KLZPG2535503S2 LMGz 350x50x1,2-2500 350 50 1.2 10.58
KLZPG2540503S2 LMGz 400x50x1,2-2500 400 50 1.2 11.75
KLZPG2545503S2 LMGz 450x50x1,2-2500 450 50 1.2 12.92
KLZPG2550503S2 LMGz 500x50x1,2-2500 500 50 1.2 14.09
KLZPG2560503S2 LMGz 600x50x1,2-2500 600 50 1.2 16.43
KLZPG2510601S2 LMGz 100x60x0,7-2500 100 60 0.7 3.02
KLZPG2515601S2 LMGz 150x60x0,7-2500 150 60 0.7 3.7
KLZPG2520602S2 LMGz 200x60x1,0-2500 200 60 1 6.27
KLZPG2525603S2 LMGz 250x60x1,2-2500 250 60 1.2 8.71
KLZPG2530603S2 LMGz 300x60x1,2-2500 300 60 1.2 9.88
KLZPG2535603S2 LMGz 350x60x1,2-2500 350 60 1.2 11.05
KLZPG2540603S2 LMGz 400x60x1,2-2500 400 60 1.2 12.22
KLZPG2545603S2 LMGz 450x60x1,2-2500 450 60 1.2 13.39
KLZPG2550603S2 LMGz 500x60x1,2-2500 500 60 1.2 14.56
KLZPG2560603S2 LMGz 600x60x1,2-2500 600 60 1.2 16.9
KLZPG2510651S2 LMGz 100x65x0,7-2500 100 65 0.7 3.15
KLZPG2515651S2 LMGz 150x65x0,7-2500 150 65 0.7 3.38
KLZPG2520652S2 LMGz 200x65x1,0-2500 200 65 1 6.47
KLZPG2525653S2 LMGz 250x65x1,2-2500 250 65 1.2 8.94
KLZPG2530653S2 LMGz 300x65x1,2-2500 300 65 1.2 10.11
KLZPG2535653S2 LMGz 350x65x1,2-2500 350 65 1.2 11.28
KLZPG2540653S2 LMGz 400x65x1,2-2500 400 65 1.2 12.45
KLZPG2545653S2 LMGz 450x65x1,2-2500 450 65 1.2 13.62
KLZPG2550653S2 LMGz 500x65x1,2-2500 500 65 1.2 14.79
KLZPG2560653S2 LMGz 600x65x1,2-2500 600 65 1.2 17.13
KLZPG2510801S2 LMGz 100x80x0,7-2500 100 80 0.7 3.58
KLZPG2515801S2 LMGz 150x80x0,7-2500 150 80 0.7 4.26
KLZPG2520803S2 LMGz 200x80x1,2-2500 200 80 1.2 8.5
KLZPG2525803S2 LMGz 250x80x1,2-2500 250 80 1.2 9.67
KLZPG2530803S2 LMGz 300x80x1,2-2500 300 80 1.2 10.84
KLZPG2535803S2 LMGz 350x80x1,2-2500 350 80 1.2 12.01
KLZPG2540803S2 LMGz 400x80x1,2-2500 400 80 1.2 13.18
KLZPG2545803S2 LMGz 450x80x1,2-2500 450 80 1.2 14.35
KLZPG2550803S2 LMGz 500x80x1,2-2500 500 80 1.2 15.52
KLZPG2560803S2 LMGz 600x80x1,2-2500 600 80 1.2 17.86
KLZPG2510102S2 LMGz 100x100x1,0-2500 100 100 1 5.9
KLZPG2515102S2 LMGz 150x100x1,0-2500 150 100 1 6.88
KLZPG2520103S2 LMGz 200x100x1,2-2500 200 100 1.2 9.48
KLZPG2525103S2 LMGz 250x100x1,2-2500 250 100 1.2 10.6
KLZPG2530103S2 LMGz 300x100x1,2-2500 300 100 1.2 11.77
KLZPG2535103S2 LMGz 350x100x1,2-2500 350 100 1.2 12.94
KLZPG2540103S2 LMGz 400x100x1,2-2500 400 100 1.2 14.11
KLZPG2545103S2 LMGz 450x100x1,2-2500 450 100 1.2 15.28
KLZPG2550103S2 LMGz 500x100x1,2-2500 500 100 1.2 16.45
KLZPG2560103S2 LMGz 600x100x1,2-2500 600 100 1.2 18.76
KLZPG2515153S2 LMGz 150x150x1,2-2500 150 150 1.2 10.6
KLZPG2520153S2 LMGz 200x150x1,2-2500 200 150 1.2 11.77
KLZPG2520203S2 LMGz 200x200x1,2-2500 200 200 1.2 14.11

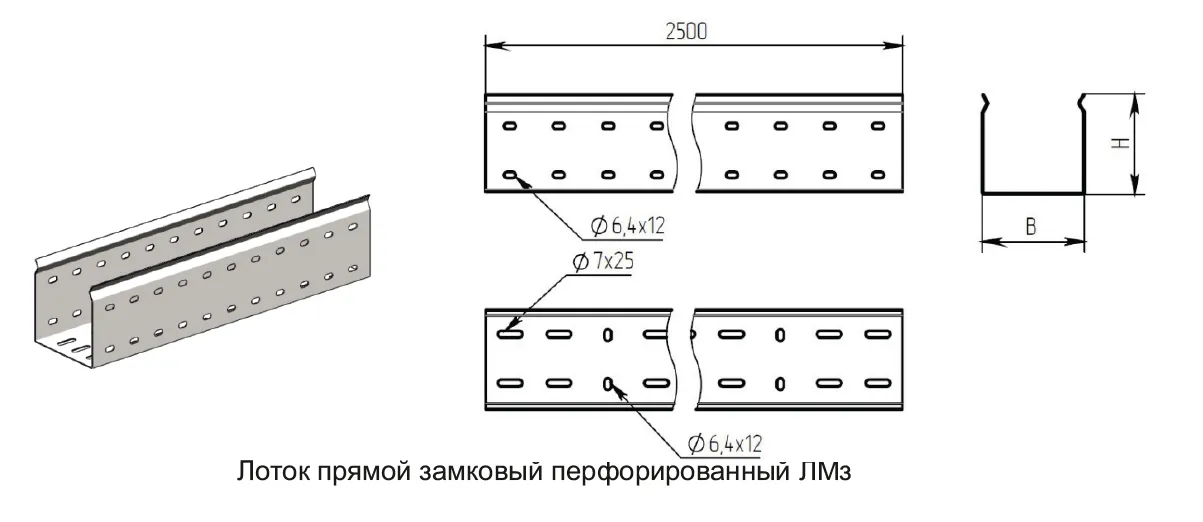

 Table. lock-joint tray straight perforated LMz

Item No. Name Width, mm Height, mm Thickness, mm Weight, kg
KLZPP2505501S2 LMz 50x50x0,7-2500 50 50 0.7 1.95
KLZPP2510501S2 LMz 100x50x0,7-2500 100 50 0.7 2.6
KLZPP2515501S2 LMz 150x50x0,7-2500 150 50 0.7 3.27
KLZPP2520502S2 LMz 200x50x1,0-2500 200 50 1 5.61
KLZPP2525503S2 LMz 250x50x1,2-2500 250 50 1.2 7.84
KLZPP2530503S2 LMz 300x50x1,2-2500 300 50 1.2 9
KLZPP2535503S2 LMz 350x50x1,2-2500 350 50 1.2 10.18
KLZPP2540503S2 LMz 400x50x1,2-2500 400 50 1.2 11.27
KLZPP2545503S2 LMz 450x50x1,2-2500 450 50 1.2 12.43
KLZPP2550503S2 LMz 500x50x1,2-2500 500 50 1.2 13.47
KLZPP2560503S2 LMz 600x50x1,2-2500 600 50 1.2 15.74
KLZPP2510601S2 LMz 100x60x0,7-2500 100 60 0.7 2.87
KLZPP2515601S2 LMz 150x60x0,7-2500 150 60 0.7 3.51
KLZPP2520602S2 LMz 200x60x1,0-2500 200 60 1 6
KLZPP2525603S2 LMz 250x60x1,2-2500 250 60 1.2 8.31
KLZPP2530603S2 LMz 300x60x1,2-2500 300 60 1.2 9.47
KLZPP2535603S2 LMz 350x60x1,2-2500 350 60 1.2 10.57
KLZPP2540603S2 LMz 400x60x1,2-2500 400 60 1.2 11.74
KLZPP2545603S2 LMz 450x60x1,2-2500 450 60 1.2 12.84
KLZPP2550603S2 LMz 500x60x1,2-2500 500 60 1.2 13.94
KLZPP2560603S2 LMz 600x60x1,2-2500 600 60 1.2 16.21
KLZPP2510651S2 LMz 100x65x0,7-2500 100 65 0.7 3.04
KLZPP2515651S2 LMz 150x65x0,7-2500 150 65 0.7 3.68
KLZPP2520652S2 LMz 200x65x1,0-2500 200 65 1 6.24
KLZPP2525653S2 LMz 250x65x1,2-2500 250 65 1.2 8.6
KLZPP2530653S2 LMz 300x65x1,2-2500 300 65 1.2 9.71
KLZPP2535653S2 LMz 350x65x1,2-2500 350 65 1.2 10.87
KLZPP2540653S2 LMz 400x65x1,2-2500 400 65 1.2 12.03
KLZPP2545653S2 LMz 450x65x1,2-2500 450 65 1.2 13.15
KLZPP2550653S2 LMz 500x65x1,2-2500 500 65 1.2 14.24
KLZPP2560653S2 LMz 600x65x1,2-2500 600 65 1.2 16.5
KLZPP2510801S2 LMz 100x80x0,7-2500 100 80 0.7 3.49
KLZPP2515801S2 LMz 150x80x0,7-2500 150 80 0.7 4.1
KLZPP2520803S2 LMz 200x80x1,2-2500 200 80 1.2 8.05
KLZPP2525803S2 LMz 250x80x1,2-2500 250 80 1.2 9.11
KLZPP2530803S2 LMz 300x80x1,2-2500 300 80 1.2 10.27
KLZPP2535803S2 LMz 350x80x1,2-2500 350 80 1.2 11.33
KLZPP2540803S2 LMz 400x80x1,2-2500 400 80 1.2 12.5
KLZPP2545803S2 LMz 450x80x1,2-2500 450 80 1.2 13.56
KLZPP2550803S2 LMz 500x80x1,2-2500 500 80 1.2 14.6
KLZPP2560803S2 LMz 600x80x1,2-2500 600 80 1.2 16.83
KLZPP2510102S2 LMz 100x100x1,0-2500 100 100 1 5.67
KLZPP2515102S2 LMz 150x100x1,0-2500 150 100 1 6.58
KLZPP2520103S2 LMz 200x100x1,2-2500 200 100 1.2 9.07
KLZPP2525103S2 LMz 250x100x1,2-2500 250 100 1.2 10.11
KLZPP2530103S2 LMz 300x100x1,2-2500 300 100 1.2 11.84
KLZPP2535103S2 LMz 350x100x1,2-2500 350 100 1.2 12.44
KLZPP2540103S2 LMz 400x100x1,2-2500 400 100 1.2 13.6
KLZPP2545103S2 LMz 450x100x1,2-2500 450 100 1.2 14.52
KLZPP2550103S2 LMz 500x100x1,2-2500 500 100 1.2 15.81
KLZPP2560103S2 LMz 600x100x1,2-2500 600 100 1.2 18.08
KLZPP2515153S2 LMz 150x150x1,2-2500 150 150 1.2 10.13
KLZPP2520153S2 LMz 200x150x1,2-2500 200 150 1.2 11.42
KLZPP2520203S2 LMz 200x200x1,2-2500 200 200 1.2 13.46
