Buy LOCK CROSS TRAY LKGz from the manufacturer

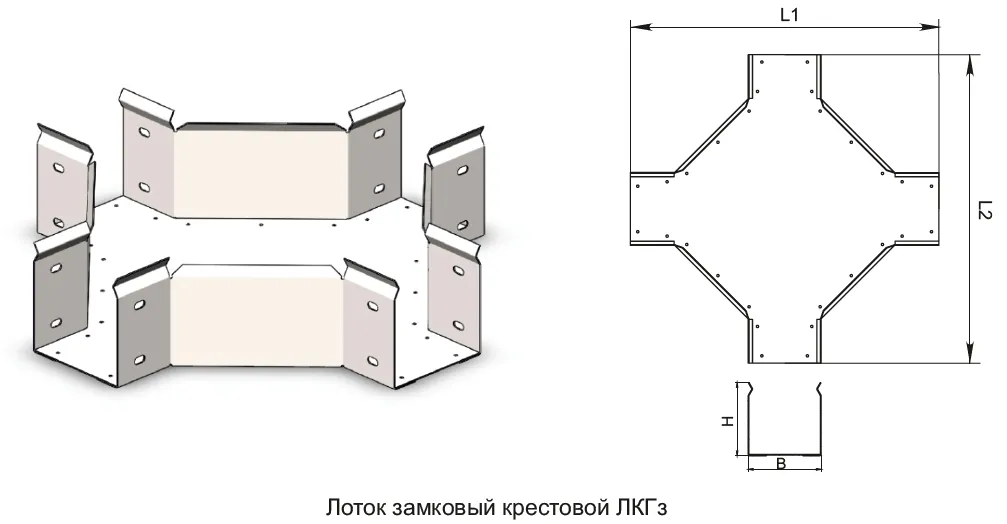

Designed for cable outlet perpendicular to the route on both sides. Used in a system of perforated (blind) locking trays.

The trays are connected by 6 sets of SLz connectors.

Table. LOCK CROSS TRAY LKGz

Item No. Name Width Height Thickness L1, L2, Weight,
    B, mm H, mm S, mm mm mm kg
KLZUK0005501S2 LKGz 50x50x0,7 50 50 0.7 370 370 0.69
KLZUK0010501S2 LKGz 100x50x0,7 100 50 0.7 420 420 0.9
KLZUK0015501S2 LKGz 150x50x0,7 150 50 0.7 470 470 1.15
KLZUK0020502S2 LKGz 200x50x1,0 200 50 1 520 520 2.01
KLZUK0025503S2 LKGz 250x50x1,2 250 50 1.2 570 570 2.93
KLZUK0030503S2 LKGz 300x50x1,2 300 50 1.2 620 620 3.49
KLZUK0035503S2 LKGz 350x50x1,2 350 50 1.2 670 670 4.09
KLZUK0040503S2 LKGz 400x50x1,2 400 50 1.2 720 720 4.74
KLZUK0045503S2 LKGz 450x50x1,2 450 50 1.2 770 770 5.44
KLZUK0050503S2 LKGz 500x50x1,2 500 50 1.2 820 820 6.19
KLZUK0060503S2 LKGz 600x50x1,2 600 50 1.2 920 920 7.81
KLZUK0010601S2 LKGz 100x60x0,7 100 60 0.7 420 420 0.94
KLZUK0015601S2 LKGz 150x60x0,7 150 60 0.7 470 470 1.19
KLZUK0020602S2 LKGz 200x60x1,0 200 60 1 520 520 2.09
KLZUK0025603S2 LKGz 250x60x1,2 250 60 1.2 570 570 3.01
KLZUK0030603S2 LKGz 300x60x1,2 300 60 1.2 620 620 3.57
KLZUK0035603S2 LKGz 350x60x1,2 350 60 1.2 670 670 4.17
KLZUK0040603S2 LKGz 400x60x1,2 400 60 1.2 720 720 4.82
KLZUK0045603S2 LKGz 450x60x1,2 450 60 1.2 770 770 5.52
KLZUK0050603S2 LKGz 500x60x1,2 500 60 1.2 820 820 6.27
KLZUK0060603S2 LKGz 600x60x1,2 600 60 1.2 920 920 7.89
KLZUK0010651S2 LKGz 100x65x0,7 100 65 0.7 420 420 0.98
KLZUK0015651S2 LKGz 150x65x0,7 150 65 0.7 470 470 1.23
KLZUK0020652S2 LKGz 200x65x1,0 200 65 1 520 520 2.13
KLZUK0025653S2 LKGz 250x65x1,2 250 65 1.2 570 570 3.05
KLZUK0030653S2 LKGz 300x65x1,2 300 65 1.2 620 620 3.61
KLZUK0035653S2 LKGz 350x65x1,2 350 65 1.2 670 670 4.21
KLZUK0040653S2 LKGz 400x65x1,2 400 65 1.2 720 720 4.86
KLZUK0045653S2 LKGz 450x65x1,2 450 65 1.2 770 770 5.56
KLZUK0050653S2 LKGz 500x65x1,2 500 65 1.2 820 820 6.31
KLZUK0060653S2 LKGz 600x65x1,2 600 65 1.2 920 920 7.93
KLZUK0010801S2 LKGz 100x80x0,7 100 80 0.7 420 420 1.06
KLZUK0015801S2 LKGz 150x80x0,7 150 80 0.7 470 470 1.31
KLZUK0020803S2 LKGz 200x80x1,2 200 80 1.2 520 520 2.7
KLZUK0025803S2 LKGz 250x80x1,2 250 80 1.2 570 570 3.21
KLZUK0030803S2 LKGz 300x80x1,2 300 80 1.2 620 620 3.77
KLZUK0035803S2 LKGz 350x80x1,2 350 80 1.2 670 670 4.37
KLZUK0040803S2 LKGz 400x80x1,2 400 80 1.2 720 720 5.02
KLZUK0045803S2 LKGz 450x80x1,2 450 80 1.2 770 770 5.72
KLZUK0050803S2 LKGz 500x80x1,2 500 80 1.2 820 820 6.47
KLZUK0060803S2 LKGz 600x80x1,2 600 80 1.2 920 920 8.09
KLZUK0010102S2 LKGz 100x100x1,0 100 100 1 420 420 1.46
KLZUK0015102S2 LKGz 150x100x1,0 150 100 1 470 470 1.71
KLZUK0020103S2 LKGz 200x100x1,2 200 100 1.2 520 520 2.9
KLZUK0025103S2 LKGz 250x100x1,2 250 100 1.2 570 570 3.41
KLZUK0030103S2 LKGz 300x100x1,2 300 100 1.2 620 620 3.97
KLZUK0035103S2 LKGz 350x100x1,2 350 100 1.2 670 670 4.57
KLZUK0040103S2 LKGz 400x100x1,2 400 100 1.2 720 720 5.22
KLZUK0045103S2 LKGz 450x100x1,2 450 100 1.2 770 770 5.92
KLZUK0050103S2 LKGz 500x100x1,2 500 100 1.2 820 820 6.67
KLZUK0060103S2 LKGz 600x100x1,2 600 100 1.2 920 920 8.29
KLZUK0015153S2 LKGz 150x150x1,2 150 150 1.2 470 470 2.39
KLZUK0020153S2 LKGz 200x150x1,2 200 150 1.2 520 520 3.38
KLZUK0020203S2 LKGz 200x200x1,2 200 200 1.2 520 520 3.86
Submit request
LOCK CROSS TRAY LKGz
