Buy SIDE LOCK BRANCH OBLGz from the manufacturer

Designed to organize both T-shaped and x-shaped route outlets in the horizontal plane. Used in a system of perforated (blind) locking trays.

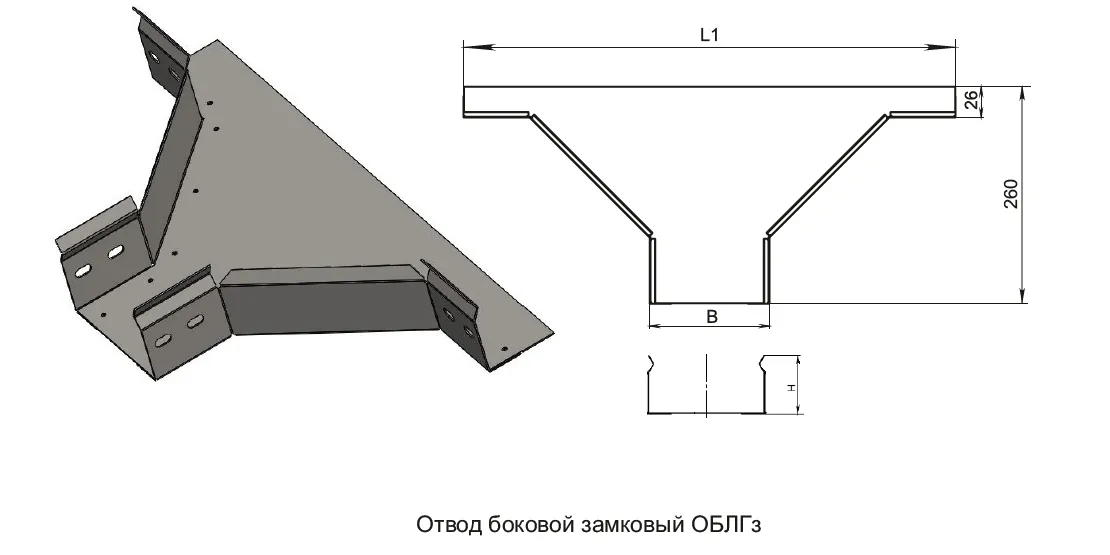

Table. LATERAL LOCK BRANCH OBLGZ

Item No. Name Width Height Thickness L1, Weight, kg
    B, mm H, mm S, mm mm
KLZOB0005501S2 OBLGz 50x50x0,7 50 50 0.7 365 0.26
KLZOB0010501S2 OBLGz 100x50x0,7 100 50 0.7 415 0.37
KLZOB0015501S2 OBLGz 150x50x0,7 150 50 0.7 465 0.42
KLZOB0020502S2 OBLGz 200x50x1,0 200 50 1 515 0.68
KLZOB0025503S2 OBLGz 250x50x1,2 250 50 1.2 565 0.88
KLZOB0030503S2 OBLGz 300x50x1,2 300 50 1.2 615 0.98
KLZOB0035503S2 OBLGz 350x50x1,2 350 50 1.2 665 1.06
KLZOB0040503S2 OBLGz 400x50x1,2 400 50 1.2 715 1.14
KLZOB0045503S2 OBLGz 450x50x1,2 450 50 1.2 765 1.23
KLZOB0050503S2 OBLGz 500x50x1,2 500 50 1.2 815 1.32
KLZOB0060503S2 OBLGz 600x50x1,2 600 50 1.2 915 1.5
KLZOB0010601S2 OBLGz 100x60x0,7 100 60 0.7 415 0.39
KLZOB0015601S2 OBLGz 150x60x0,7 150 60 0.7 465 0.44
KLZOB0020602S2 OBLGz 200x60x1,0 200 60 1 515 0.7
KLZOB0025603S2 OBLGz 250x60x1,2 250 60 1.2 565 0.92
KLZOB0030603S2 OBLGz 300x60x1,2 300 60 1.2 615 1.01
KLZOB0035603S2 OBLGz 350x60x1,2 350 60 1.2 665 1.09
KLZOB0040603S2 OBLGz 400x60x1,2 400 60 1.2 715 1.18
KLZOB0045603S2 OBLGz 450x60x1,2 450 60 1.2 765 1.27
KLZOB0050603S2 OBLGz 500x60x1,2 500 60 1.2 815 1.36
KLZOB0060603S2 OBLGz 600x60x1,2 600 60 1.2 915 1.54
KLZOB0010651S2 OBLGz 100x65x0,7 100 65 0.7 415 0.41
KLZOB0015651S2 OBLGz 150x65x0,7 150 65 0.7 465 0.46
KLZOB0020652S2 OBLGz 200x65x1,0 200 65 1 515 0.74
KLZOB0025653S2 OBLGz 250x65x1,2 250 65 1.2 565 0.96
KLZOB0030653S2 OBLGz 300x65x1,2 300 65 1.2 615 1.05
KLZOB0035653S2 OBLGz 350x65x1,2 350 65 1.2 665 1.14
KLZOB0040653S2 OBLGz 400x65x1,2 400 65 1.2 715 1.22
KLZOB0045653S2 OBLGz 450x65x1,2 450 65 1.2 765 1.3
KLZOB0050653S2 OBLGz 500x65x1,2 500 65 1.2 815 1.4
KLZOB0060653S2 OBLGz 600x65x1,2 600 65 1.2 915 1.58
KLZOB0010801S2 OBLGz 100x80x0,7 100 80 0.7 415 0.45
KLZOB0015801S2 OBLGz 150x80x0,7 150 80 0.7 465 0.5
KLZOB0020803S2 OBLGz 200x80x1,2 200 80 1.2 515 0.94
KLZOB0025803S2 OBLGz 250x80x1,2 250 80 1.2 565 1.02
KLZOB0030803S2 OBLGz 300x80x1,2 300 80 1.2 615 1.11
KLZOB0035803S2 OBLGz 350x80x1,2 350 80 1.2 665 1.19
KLZOB0040803S2 OBLGz 400x80x1,2 400 80 1.2 715 1.28
KLZOB0045803S2 OBLGz 450x80x1,2 450 80 1.2 765 1.37
KLZOB0050803S2 OBLGz 500x80x1,2 500 80 1.2 815 1.46
KLZOB0060803S2 OBLGz 600x80x1,2 600 80 1.2 915 1.64
KLZOB0010102S2 OBLGz 100x100x1,0 100 100 1 415 0.72
KLZOB0015102S2 OBLGz 150x100x1,0 150 100 1 465 0.79
KLZOB0020103S2 OBLGz 200x100x1,2 200 100 1.2 515 1.04
KLZOB0025103S2 OBLGz 250x100x1,2 250 100 1.2 565 1.12
KLZOB0030103S2 OBLGz 300x100x1,2 300 100 1.2 615 1.21
KLZOB0035103S2 OBLGz 350x100x1,2 350 100 1.2 665 1.29
KLZOB0040103S2 OBLGz 400x100x1,2 400 100 1.2 715 1.38
KLZOB0045103S2 OBLGz 450x100x1,2 450 100 1.2 765 1.47
KLZOB0050103S2 OBLGz 500x100x1,2 500 100 1.2 815 1.56
KLZOB0060103S2 OBLGz 600x100x1,2 600 100 1.2 915 1.74
Submit request
LATERAL LOCK BRANCH OBLGZ
