Buy END PLUG FOR LOCK TRAY ZTz from the manufacturer
Designed for installation on the end of trays at the end of the route. Used in a system of perforated (blind) locking trays.

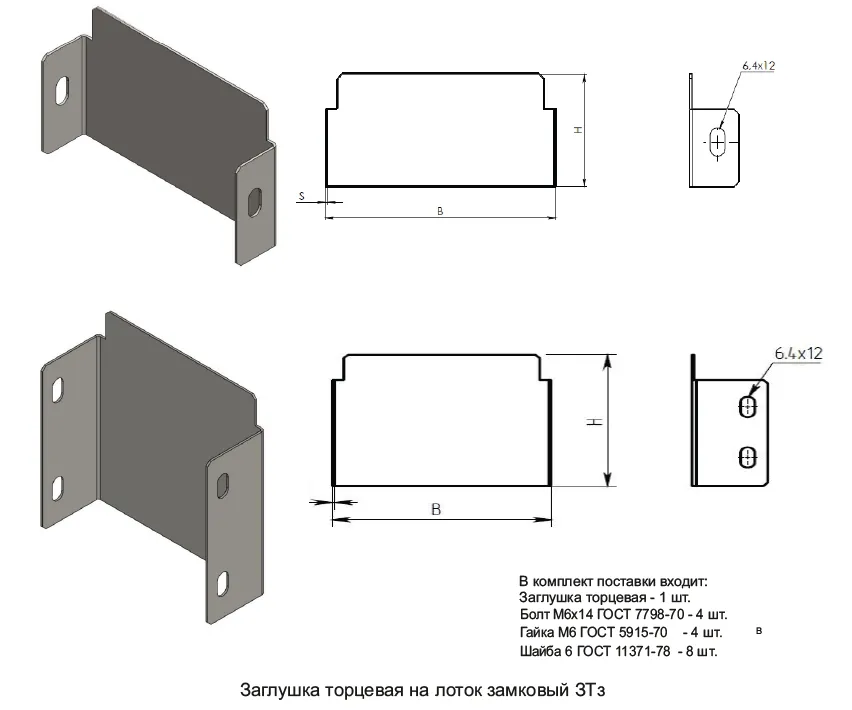

Table. END PLUG FOR LOCK TRAY ZTz
| Item No. | Name | Width B, mm | Height H, mm | Thickness S, mm | Weight with fastenings |
| products, kg | |||||
| KLZZT0005501S2 | ZTz 50x50x0,7 | 50 | 50 | 0.7 | 0.038 |
| KLZZT0010501S2 | ZTz 100x50x0,7 | 100 | 50 | 0.7 | 0.071 |
| KLZZT0015501S2 | ZTz 150x50x0,7 | 150 | 50 | 0.7 | 0.084 |
| KLZZT0020501S2 | ZTz 200x50x0,7 | 200 | 50 | 0.7 | 0.098 |
| KLZZT0025502S2 | ZTz 250x50x1,0 | 250 | 50 | 1 | 0.14 |
| KLZZT0030502S2 | ZTz 300x50x1,0 | 300 | 50 | 1 | 0.16 |
| KLZZT0035502S2 | ZTz 350x50x1,0 | 350 | 50 | 1 | 0.18 |
| KLZZT0040502S2 | ZTz 400x50x1,0 | 400 | 50 | 1 | 0.2 |
| KLZZT0045502S2 | ZTz 450x50x1,0 | 450 | 50 | 1 | 0.22 |
| KLZZT0050502S2 | ZTz 500x50x1,0 | 500 | 50 | 1 | 0.24 |
| KLZZT0060502S2 | ZTz 600x50x1,0 | 600 | 50 | 1 | 0.27 |
| KLZZT0010601S2 | ZTz 100x60x0,7 | 100 | 60 | 0.7 | 0.079 |
| KLZZT0015601S2 | ZTz 150x60x0,7 | 150 | 60 | 0.7 | 0.095 |
| KLZZT0020601S2 | ZTz 200x60x0,7 | 200 | 60 | 0.7 | 0.111 |
| KLZZT0025602S2 | ZTz 250x60x1,0 | 250 | 60 | 1 | 0.164 |
| KLZZT0030602S2 | ZTz 300x60x1,0 | 300 | 60 | 1 | 0.187 |
| KLZZT0035602S2 | ZTz 350x60x1,0 | 350 | 60 | 1 | 0.21 |
| KLZZT0040602S2 | ZTz 400x60x1,0 | 400 | 60 | 1 | 0.232 |
| KLZZT0045602S2 | ZTz 450x60x1,0 | 450 | 60 | 1 | 0.255 |
| KLZZT0050602S2 | ZTz 500x60x1,0 | 500 | 60 | 1 | 0.278 |
| KLZZT0060602S2 | ZTz 600x60x1,0 | 600 | 60 | 1 | 0.324 |
| KLZZT0010651S2 | ZTz 100x65x0,7 | 100 | 65 | 0.7 | 0.082 |
| KLZZT0015651S2 | ZTz 150x65x0,7 | 150 | 65 | 0.7 | 0.1 |
| KLZZT0020651S2 | ZTz 200x65x0,7 | 200 | 65 | 0.7 | 0.117 |
| KLZZT0025652S2 | ZTz 250x65x1,0 | 250 | 65 | 1 | 0.175 |
| KLZZT0030652S2 | ZTz 300x65x1,0 | 300 | 65 | 1 | 0.2 |
| KLZZT0035652S2 | ZTz 350x65x1,0 | 350 | 65 | 1 | 0.225 |
| KLZZT0040652S2 | ZTz 400x65x1,0 | 400 | 65 | 1 | 0.25 |
| KLZZT0045652S2 | ZTz 450x65x1,0 | 450 | 65 | 1 | 0.274 |
| KLZZT0050652S2 | ZTz 500x65x1,0 | 500 | 65 | 1 | 0.3 |
| KLZZT0060652S2 | ZTz 600x65x1,0 | 600 | 65 | 1 | 0.35 |
| KLZZT0010801S2 | ZTz 100x80x0,7 | 100 | 80 | 0.7 | 0.102 |
| KLZZT0015801S2 | ZTz 150x80x0,7 | 150 | 80 | 0.7 | 0.123 |
| KLZZT0020801S2 | ZTz 200x80x0,7 | 200 | 80 | 0.7 | 0.145 |
| KLZZT0025802S2 | ZTz 250x80x1,0 | 250 | 80 | 1 | 0.22 |
| KLZZT0030802S2 | ZTz 300x80x1,0 | 300 | 80 | 1 | 0.252 |
| KLZZT0035802S2 | ZTz 350x80x1,0 | 350 | 80 | 1 | 0.282 |
| KLZZT0040802S2 | ZTz 400x80x1,0 | 400 | 80 | 1 | 0.313 |
| KLZZT0045802S2 | ZTz 450x80x1,0 | 450 | 80 | 1 | 0.344 |
| KLZZT0050802S2 | ZTz 500x80x1,0 | 500 | 80 | 1 | 0.374 |
| KLZZT0060802S2 | ZTz 600x80x1,0 | 600 | 80 | 1 | 0.436 |
| KLZZT0010101S2 | ZTz 100x100x0,7 | 100 | 100 | 0.7 | 0.12 |
| KLZZT0015101S2 | ZTz 150x100x0,7 | 150 | 100 | 0.7 | 0.147 |
| KLZZT0020101S2 | ZTz 200x100x0,7 | 200 | 100 | 0.7 | 0.174 |
| KLZZT0025102S2 | ZTz 250x100x1,0 | 250 | 100 | 1 | 0.27 |
| KLZZT0030102S2 | ZTz 300x100x1,0 | 300 | 100 | 1 | 0.309 |
| KLZZT0035102S2 | ZTz 350x100x1,0 | 350 | 100 | 1 | 0.347 |
| KLZZT0040102S2 | ZTz 400x100x1,0 | 400 | 100 | 1 | 0.386 |
| KLZZT0045102S2 | ZTz 450x100x1,0 | 450 | 100 | 1 | 0.424 |
| KLZZT0050102S2 | ZTz 500x100x1,0 | 500 | 100 | 1 | 0.463 |
| KLZZT0060102S2 | ZTz 600x100x1,0 | 600 | 100 | 1 | 0.54 |
